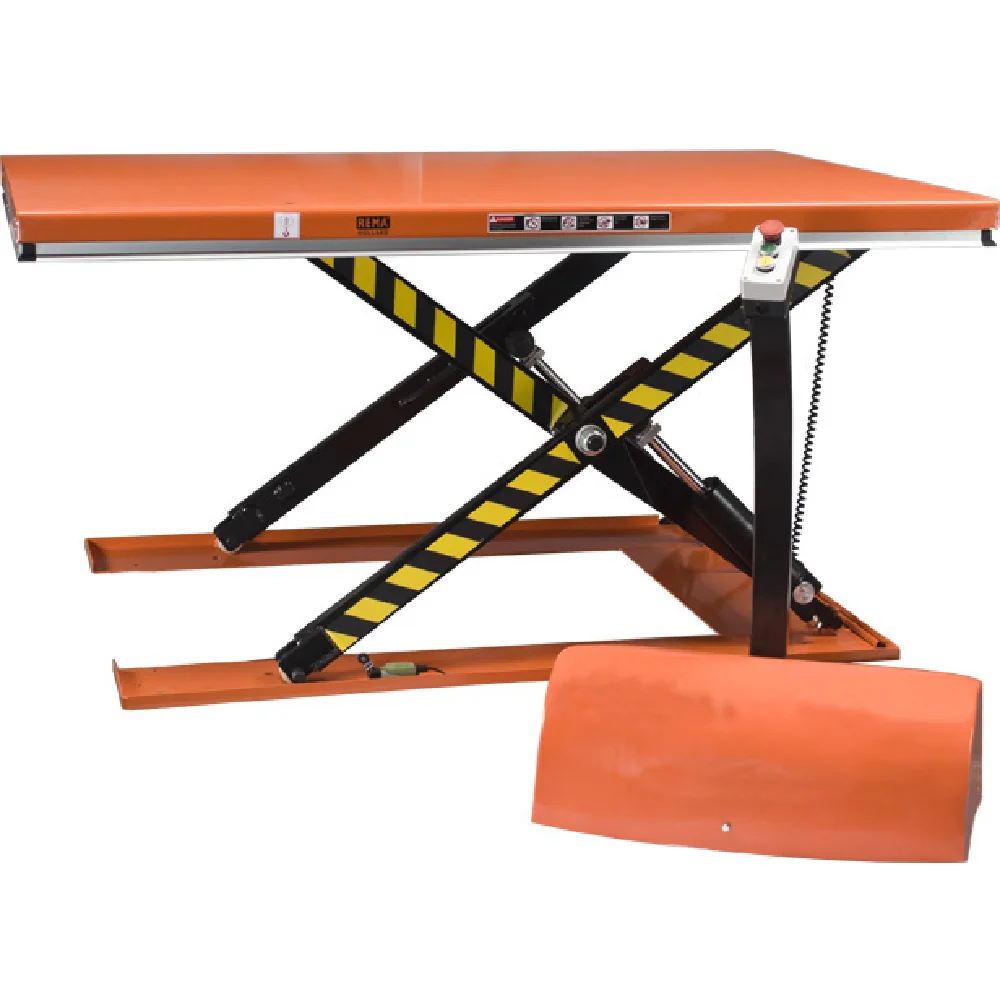

Low Profile Stationaire Heftafel 2 Ton – Platform 1600 x 1200 mm – Hefhoogte 765 mm

Low Profile Stationary Lift Table 2 Ton – Platform 1600 x 1200 mm – Lifting Height 765 mm

The SalesBridges low profile lift table is perfect for safely lifting heavy loads up to 2000 kg to a maximum height of 765 mm. Its extremely low profile design eliminates the need for costly pit construction. The integrated ramp allows easy loading and unloading with pallet trucks or trolleys.

With features such as aluminium safety frame, overload protection, and hydraulic safety valves, this lift table ensures safe and reliable operation in industrial environments.

Key Features

• Low profile design saves pit construction time

• Platform size 1600 x 1200 mm

• Maximum lifting height 765 mm

• Load capacity 2000 kg

• Solid steel scissors for stable lifting

• Aluminium safety frame

• Overload protection

• Hose rupture safety valve

• Hard chromed cylinder and piston rod

• Lifetime lubricated bearings

• External drive unit

• Ramp angle 5°

• Operating voltage 400V, control voltage 24V

• Protection class IP54

• CE marked according to EN 13157 and EN 12100

Applications

• Warehouses and logistics

• Assembly lines

• Production facilities

• Machine maintenance

• Ergonomic workstations

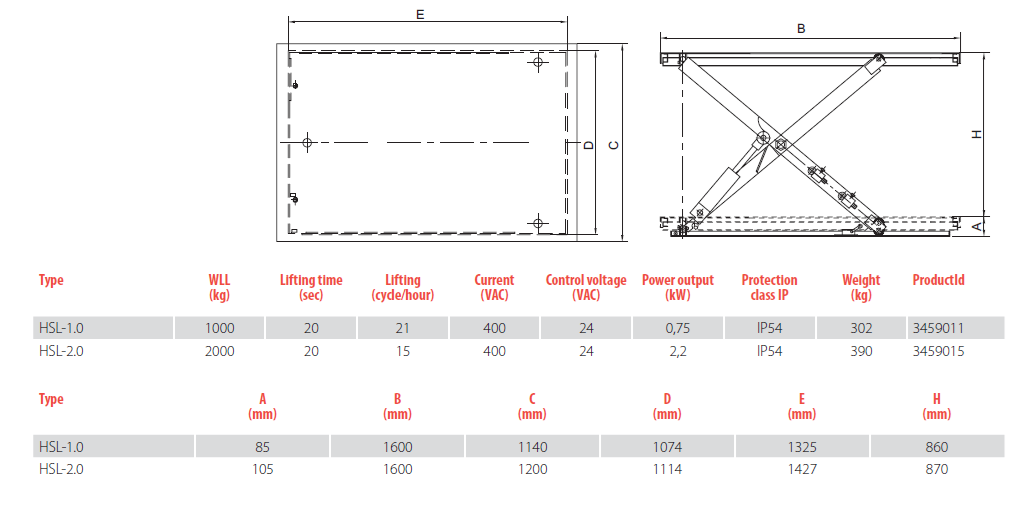

Technical Specifications

Standard Delivery

• 24V remote control with push buttons

• Emergency stop

• Removable lifting eyes

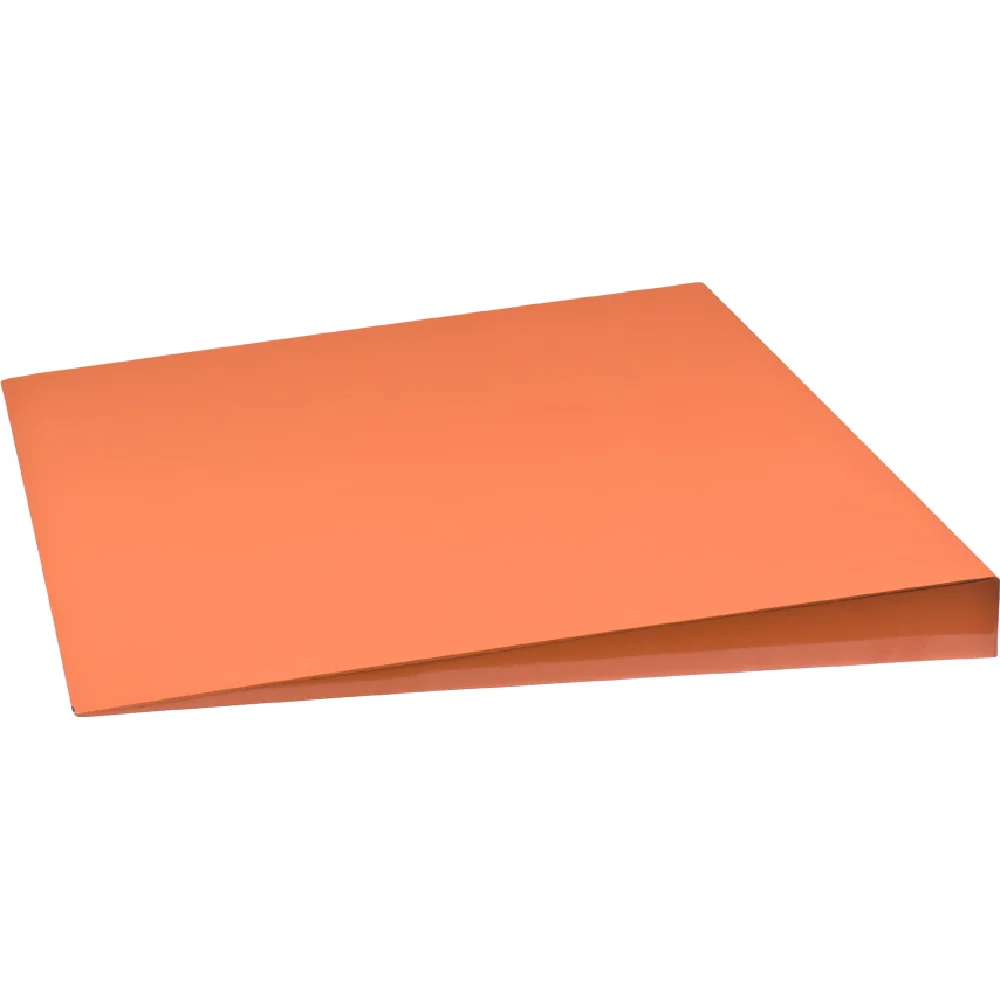

• Practical ramp included

Delivery

Delivery in the Netherlands and Belgium, and shipping across Europe via SALESBRIDGES.
