KT-K Fixed Forklift Crane Arm 2.5T and 5T
€1.600,00
Incl. tax
Bauer
KT-K Fixed Forklift Crane Arm 2.5T and 5T
EUR 1.600,00
Excl. tax
EUR 1.936,00
Incl. tax
Excl. Shipping costs
KT-K fixed forklift crane arm with 2,500 kg or 5,000 kg capacity. Robust steel construction, 5 working positions and swivel hook. Delivery throughout the Netherlands and across Europe.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description
BAUER KT-K Fixed Forklift Crane Arm 2.5T and 5T
The BAUER KT-K fixed forklift crane arm is a professional forklift attachment for safely lifting, moving and positioning loads beyond the normal fork reach. Select KT-K 2.5 or KT-K 5.0 according to required working load limit, dimensions and forklift residual capacity.
Key Features
- Fixed, robust steel crane arm for forklifts
- Available as KT-K 2.5 and KT-K 5.0
- Five hook positions for adjustable reach
- One swivel lifting hook
- Safety chain helps secure the attachment against slipping
- For professional industry, logistics, maintenance and material handling
Technical Specifications
| Specification | KT-K 2.5 | KT-K 5.0 |
|---|---|---|
| SKU / article number | SBKTK25T | SBKTK5T |
| Brand | BAUER | BAUER |
| Origin | Made in Germany | Made in Germany |
| Type | Fixed forklift crane arm | Fixed forklift crane arm |
| Dimensions (L × W × H) | 2,000 × 490 × 480 mm | 2,000 × 500 × 520 mm |
| Weight, painted | 135 kg | 160 kg |

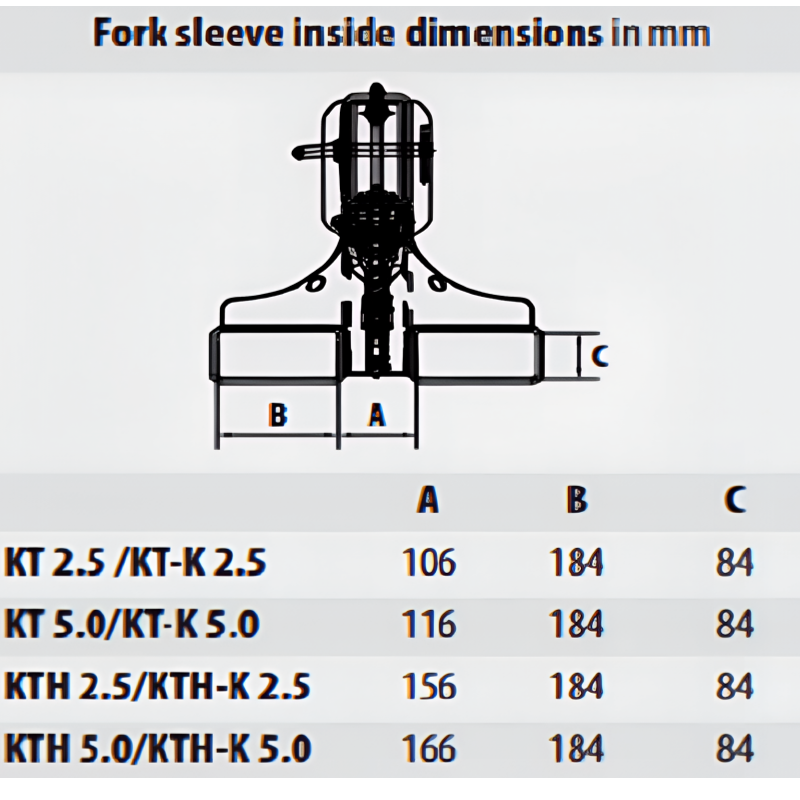

| Fork sleeve internal dimensions (A × B × C) | 106 × 184 × 84 mm | 116 × 184 × 84 mm |
| Number of hook positions | 5 | 5 |
| WLL / maximum load position 1 | 2,500 kg | 5,000 kg |
| WLL position 2 | 2,500 kg | 3,550 kg |
| WLL position 3 | 2,500 kg | 2,750 kg |
| WLL position 4 | 1,800 kg | 2,250 kg |
| WLL position 5 | 1,400 kg | 1,950 kg |
Safe Use
- Check the forklift residual capacity before use.
- Allow for the crane arm weight and lifted load.
- Never exceed the WLL for the selected hook position.
- Secure the attachment using the safety chain.
Delivery and Request for Quotation
SALESBRIDGES supplies BAUER forklift crane arms throughout the Netherlands and across Europe.
For price, availability, configuration advice or an RFQ: [email protected] | +31 6 52883848
Product information
| Brand | Bauer |
| Article code | SBKTK25T |
| SKU | SBKTK25T |
| EAN | 9503955764986 |
