IBC Residue Drainers IR Type IR-1 / IR-2 / IR-3 – Up to 1500 kg – Hot-dip Galvanized

IBC Residue Drainer IR – 1500 kg – Hot-Dip Galvanized

The IBC Residue Drainer Type IR is a professional solution designed to maximize the drainage of Intermediate Bulk Containers. An integrated spring mechanism automatically tilts the IBC further forward as the liquid level inside the container decreases. The lower the level, the greater the inclination, helping the remaining contents flow toward the outlet.

The sturdy steel construction features a hot-dip galvanized finish and is designed for professional use in industrial production, warehouses, logistics and material-handling environments. The IBC residue drainer is available in IR-1, IR-2 and IR-3 versions for different installation requirements.

Key Features

• Designed for maximum drainage of IBC containers
• Automatic spring-assisted tilting mechanism
• Increasing inclination as the liquid level decreases
• Maximum lift height: 95 mm
• Sturdy steel construction
• Hot-dip galvanized finish
• Load capacity up to 1500 kg
• Floor area: 1200 × 1000 mm
• Available in IR-1, IR-2 and IR-3 versions
• Designed for professional industrial applications

Available Versions

IR-1

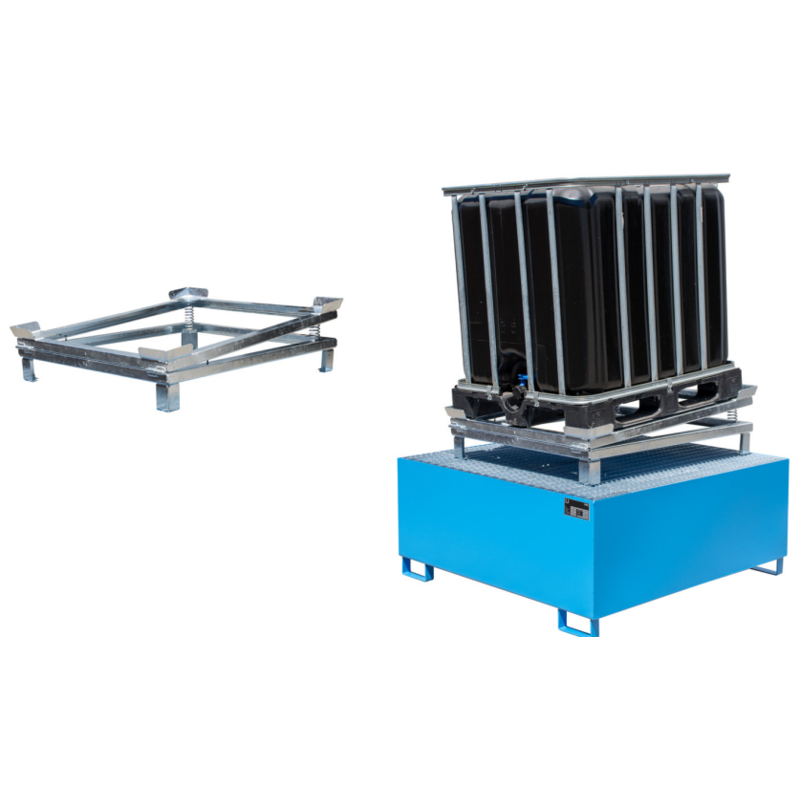

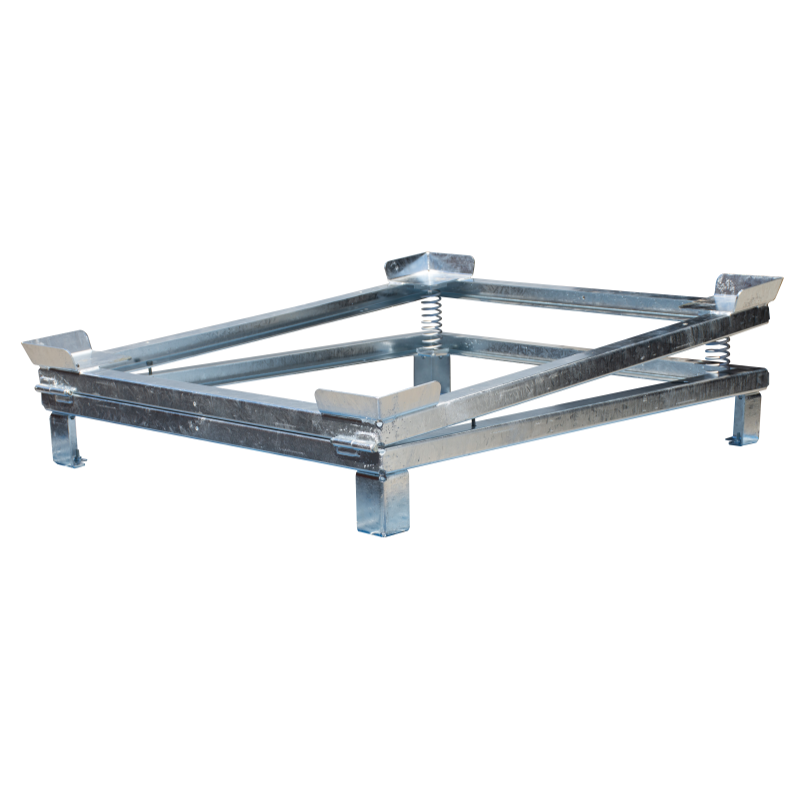

Tilting frame with securing corners and support legs. The support legs have prepared drill holes for screw mounting onto a 1000-litre sump tray.

IR-2

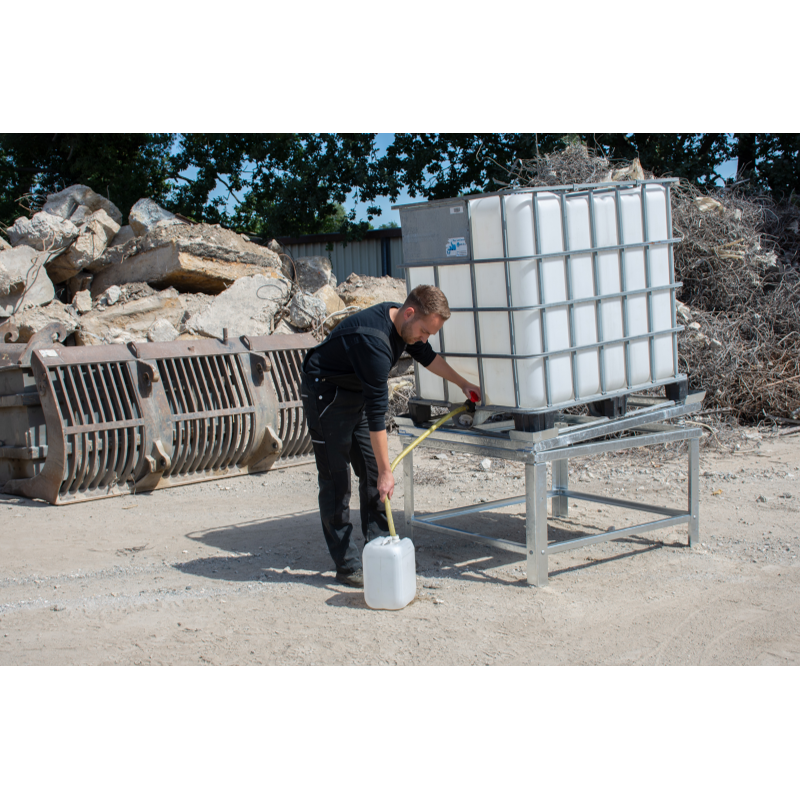

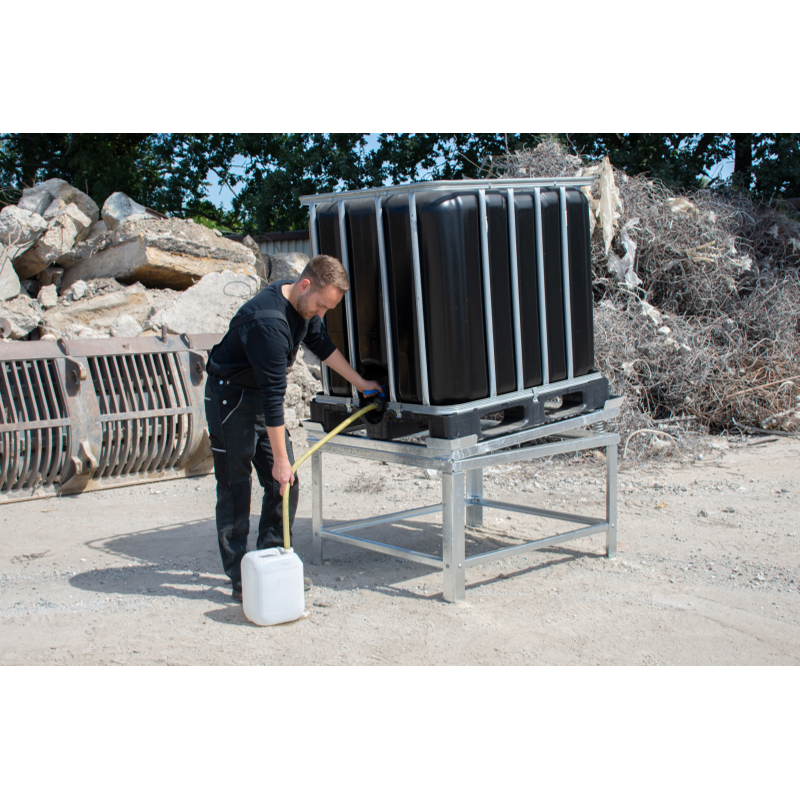

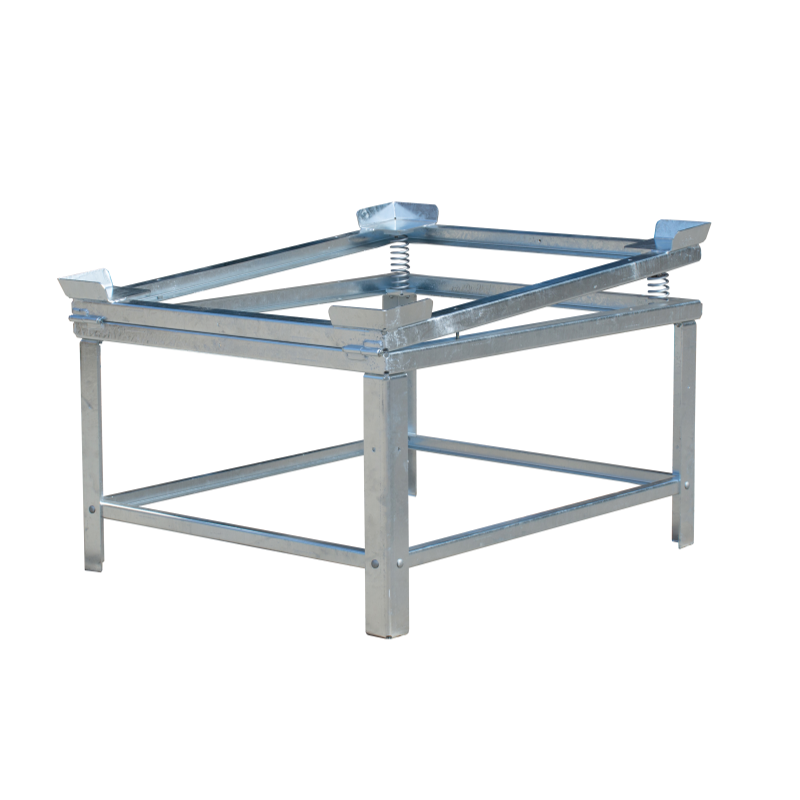

Tilting frame with securing corners mounted on a base rack. The elevated ergonomic design provides a more comfortable working position. Supplied in kit form for easy assembly.

IR-3

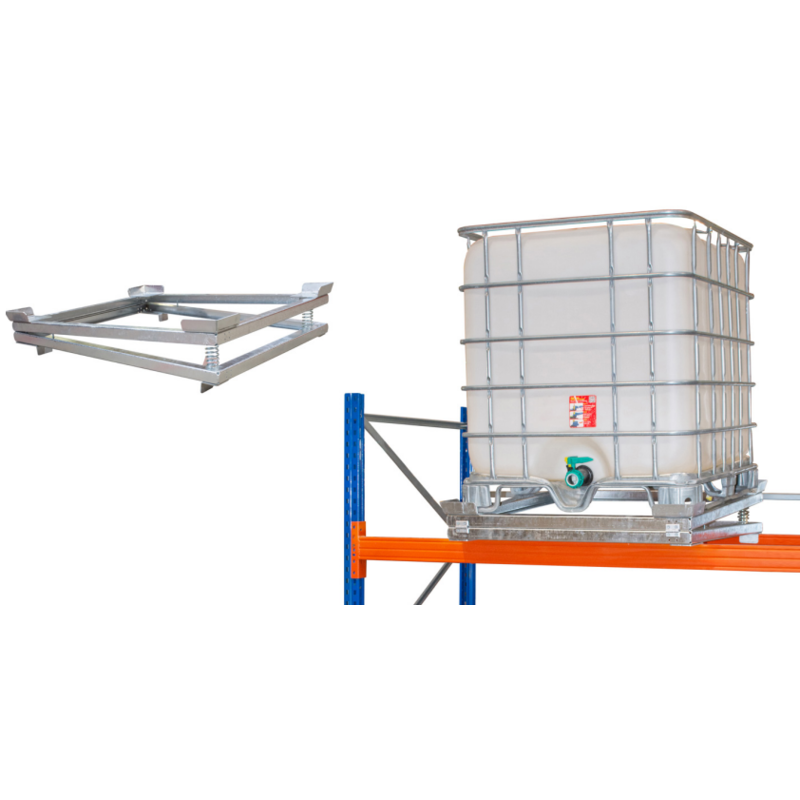

Tilting frame with securing corners and screwed brackets for securing the unit to a pallet rack.

Technical Specifications

Professional Applications

The IBC residue drainer is suitable for businesses handling liquids in IBC containers where efficient drainage and reduction of residual contents are important.

Typical applications include:

• Industrial production
• Warehouses and storage facilities
• Logistics operations
• Material handling
• IBC liquid handling
• Professional production and process environments

Delivery available throughout the Netherlands and across Europe.
