High Voltage Cable Heating Jacket 0-90°C
High Voltage Cable Heating Jacket 0-90°C. Professional industrial heating and insulation solution for drums, IBC containers and process applications. Temperature range: 0-90°C. Application / capacity: Cable Ø60-160 mm, Cable Ø60-160 mm.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

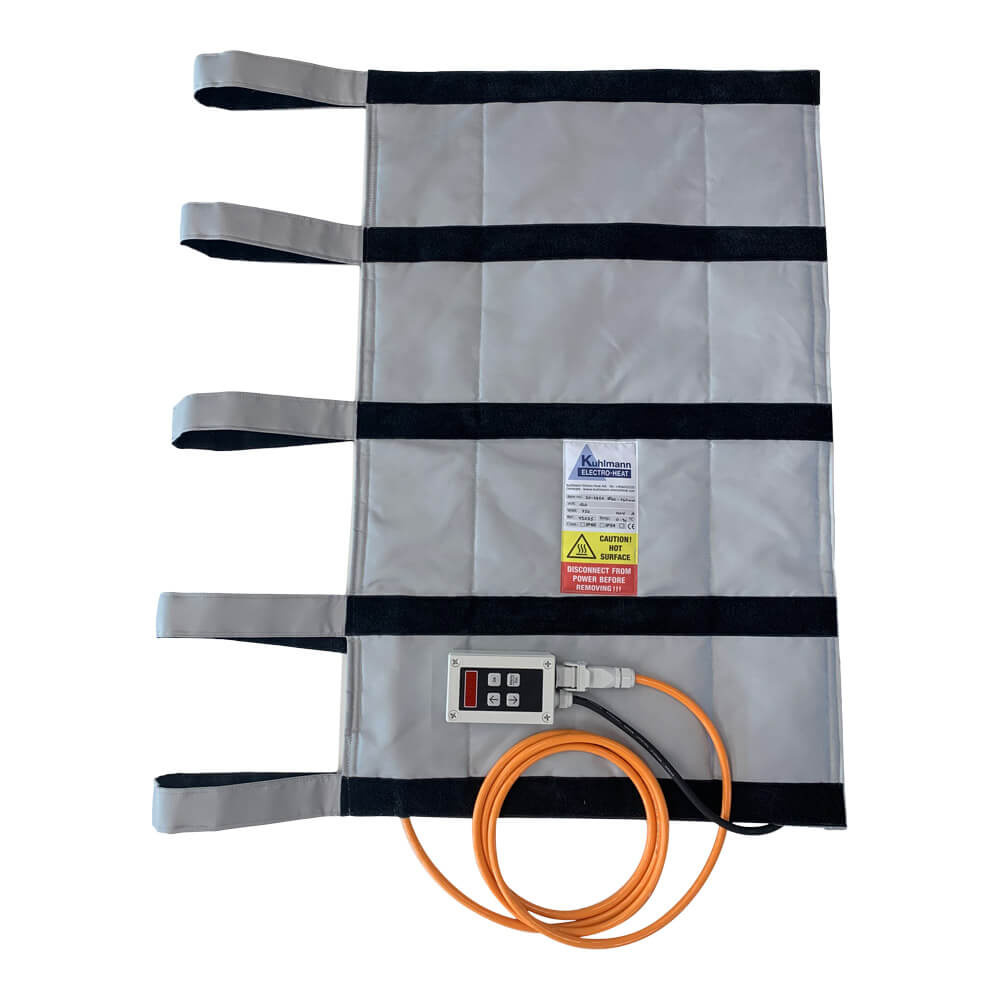

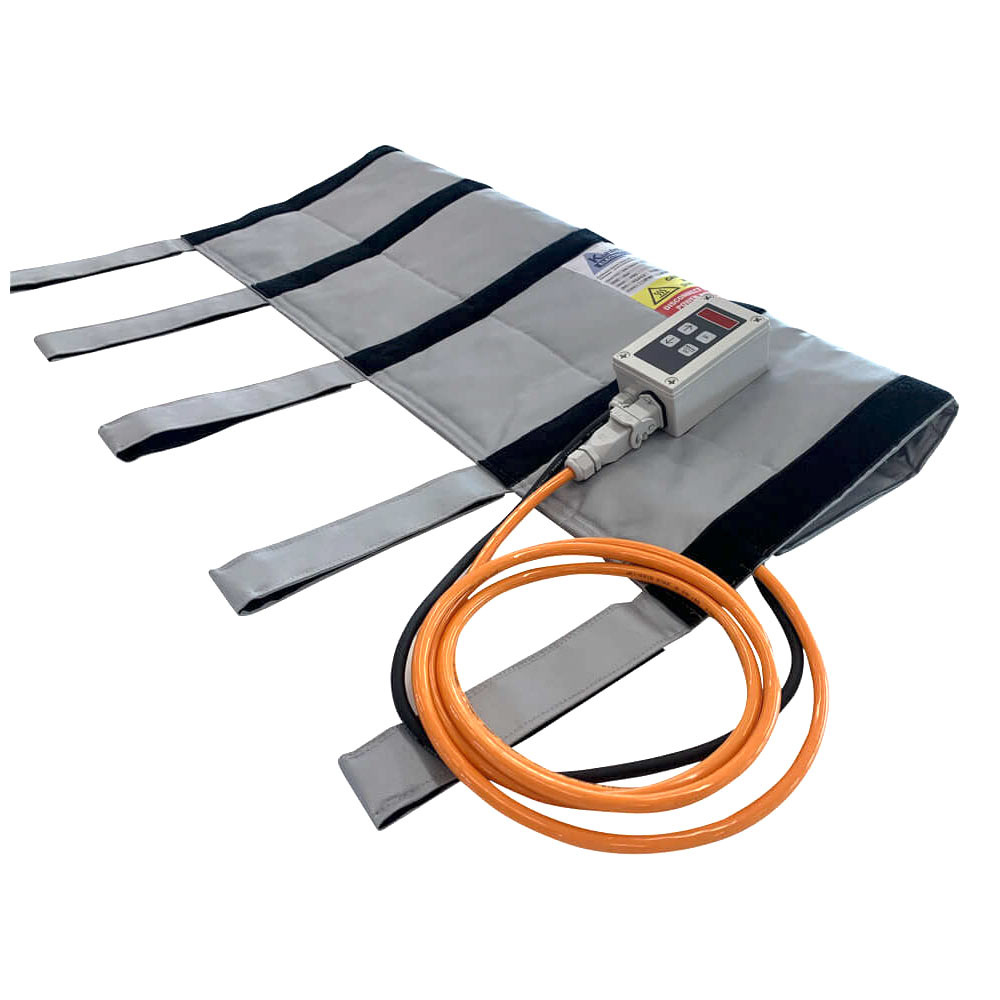

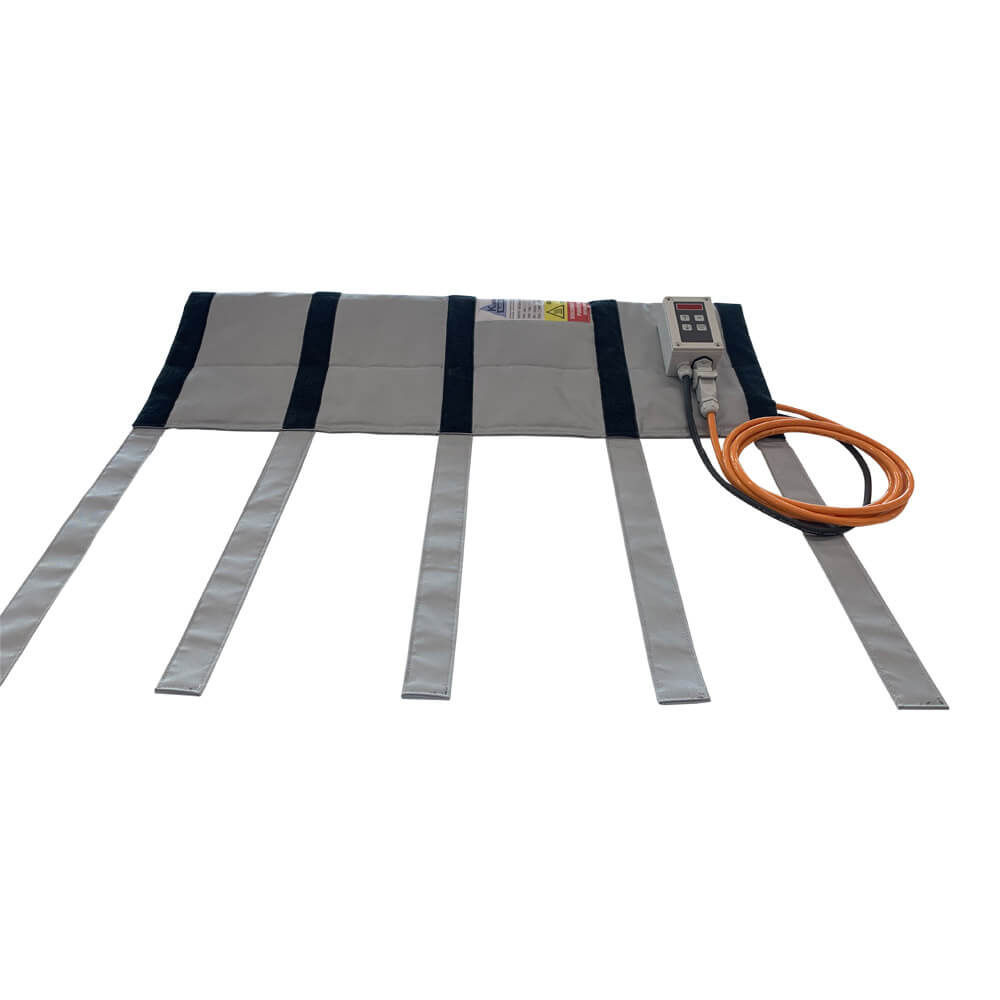

High Voltage Cable Heating Jacket 0-90°C
High Voltage Cable Heating Jacket 0-90°C is a professional solution for industrial heating, temperature maintenance or insulation. Suitable for production, logistics, storage and process-industry applications. SALESBRIDGES supplies this product range throughout the Netherlands and across Europe.
Key features
- Fits cables Ø60-160 mm
- PT100 sensor
- 3 m cable with Harting connector for controller
- For use with external digital controller
Technical specifications
| Model | Application / capacity | Voltage | Power | Temperature range | Control | Dimensions | Weight | Article code |
|---|---|---|---|---|---|---|---|---|
| 1 meter jacket | Cable Ø60-160 mm | 230V | 750W | 0-90°C | External controller required | 1000x625 mm | 6 kg | SB202851 |
| 2 meter jacket | Cable Ø60-160 mm | 230V | 1500W | 0-90°C | External controller required | 2000x625 mm | 7 kg | SB182573 |
The heating jackets can be used on extra high voltage cables, and high voltage power cables with its primary purpose to straighten the lines prior to connection. Our series is designed to be combined in many different ways to allow for several cable-dimensions.
The heating jackets are controlled through a built in PT100 sensor which is wired back to a detachable adjustable temperature controller.
The digital temperature controller has a digital temperature display. We offer heaters and controllers in both 230V and 110V.
Our heating blankets come in many shapes and sizes. So if you do not find the specific dimensions you need, please do not hesitate to contact us as we can deliver heating blankets in special sizes.
Technical specifications:
- Silicone impregnated cloth
- Fiberglass insulation
- 6mm insulation for minimal heat loss
- Resistance heating cable
- Sensor for controller
- Limiter at 100ºC
- Termofuse 130ºC
- Heating jacket lengths up to 2 m
- Available with adjustable Digital temperature controller
- Straps for fixed installation
- Many sizes in stock
- Special sizes produced upon request
This product is perfect for:
- Cable straightening
- High voltage cable straightening
- Cable relaxation
- Post Curing of epoxy joints
- High voltage cable joining
Amongst others used by/in:
- Construction industry.
Brand and origin
Brand: Kuhlman
Origin: Denmark
Delivery and quotation
Delivery throughout the Netherlands and across Europe. For technical advice, availability or an RFQ: [email protected] | +31 6 52883848.
| Brand | Kuhlman |
| Article code | SB202851 |
| SKU | SB202851 |
