Heavy Duty Tipper Type SK With Automatic Release – 0.30 To 2.10 m³

Heavy Duty Tipper Type SK with Automatic Release

The Heavy Duty Tipper Type SK is designed for the safe collection, internal transport and controlled emptying of heavy materials in demanding industrial environments. With a 4,000 kg load capacity and available volumes ranging from 0.30 to 2.10 m³, the SK range provides a professional material handling solution for intensive heavy-duty applications.

The tipper is Made in Germany and manufactured with a highly robust steel construction. The container body features 5 mm thick steel walls, while the fork sleeves are manufactured from 6 mm thick steel. Full-length closed fork sleeves provide additional strength and durability during regular forklift operation.

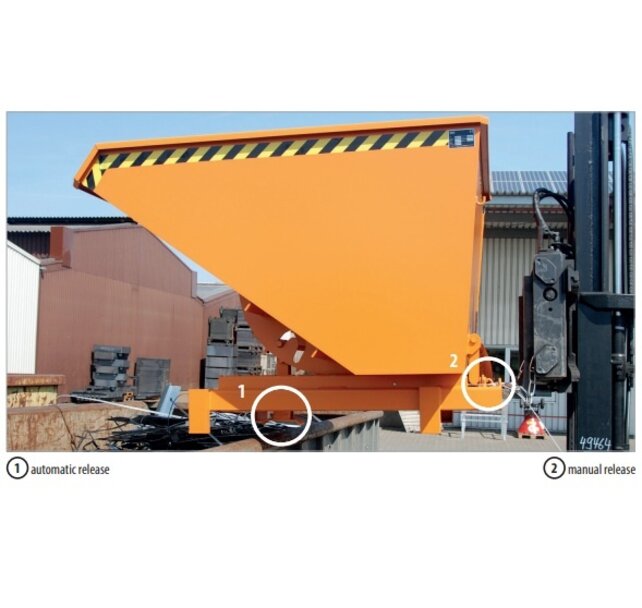

Automatic and Manual Release

The Heavy Duty Tipper Type SK provides both automatic and manual emptying options.

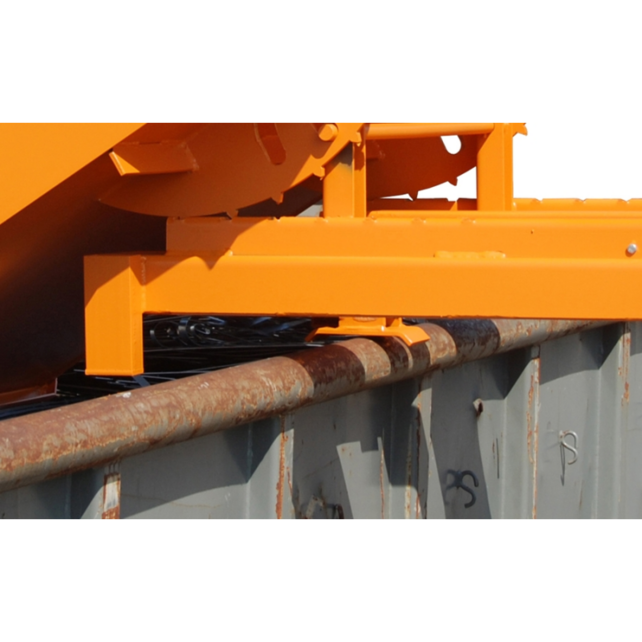

• Automatic release when the release foot is placed on the rim of the receiving container

• Manual release using the pull cable

• Secured against slipping

• Protection against unintentional tipping

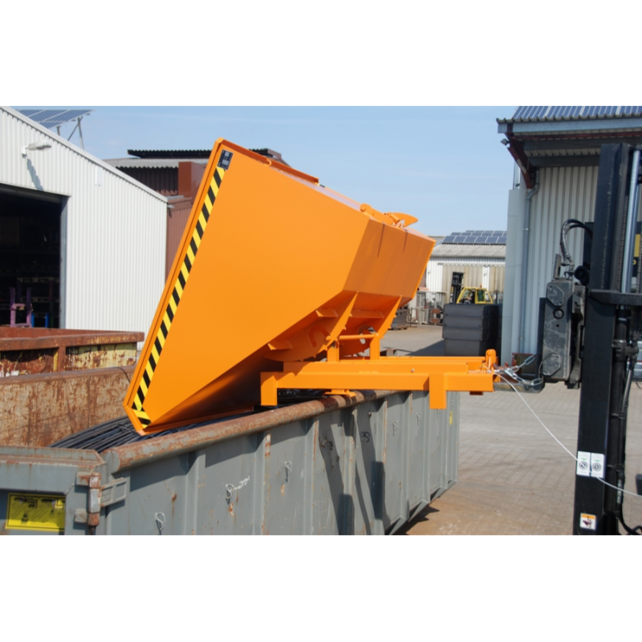

• Rolling mechanism for controlled emptying

• Optimised load centre

• Designed for intensive professional use

The automatic release system allows the forklift operator to empty the container efficiently without unnecessarily leaving the forklift.

Key Features

• Heavy duty tipper for handling heavy materials

• Load capacity up to 4,000 kg

• Available volumes from 0.30 to 2.10 m³

• Robust steel construction

• Reinforced container edging

• 5 mm steel body wall thickness

• 6 mm steel fork sleeve thickness

• Full-length closed fork sleeves

• Automatic release mechanism

• Manual pull-cable release

• Secured against slipping and unintentional tipping

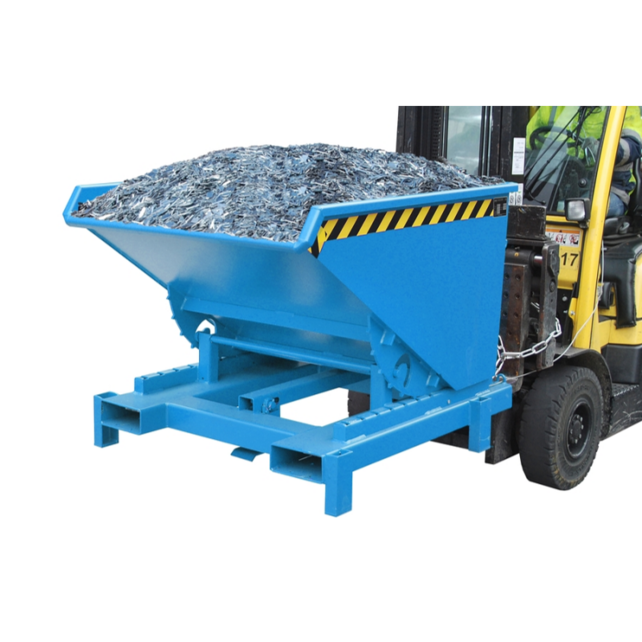

• Suitable for forklift handling

• Suitable for pallet trucks

• Optional castor configuration available

• Made in Germany

Technical Specifications

Fork Sleeve Dimensions

• SK 300: 300 × 200 × 80 mm

• SK 600 to SK 2100: 600 × 200 × 80 mm

• Full-length closed construction

Available Colours and Finishes

Depending on the selected configuration, the SK range is available in several industrial colours and finishes:

• RAL 2000

• RAL 3000

• RAL 5012

• RAL 6011

• RAL 7005

• Hot-dip galvanized finish

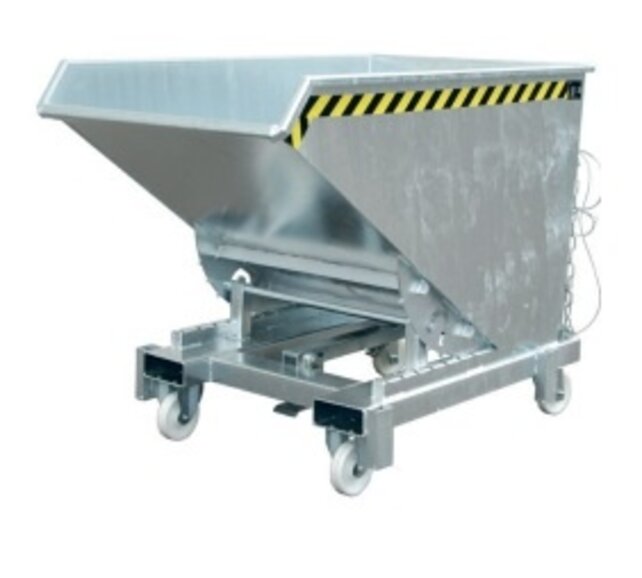

Optional Castors

For applications where the tipper needs to be moved manually, an optional castor configuration is available with:

• 2 swivel castors

• 2 fixed castors

• Polyamide wheels

• 1 swivel castor with brake

When using the castor configuration, the permissible load capacity of the selected wheel arrangement must be considered.

Typical Applications

The Heavy Duty Tipper Type SK is suitable for applications including:

• Heavy industrial materials

• Manufacturing facilities

• Metalworking industries

• Warehouses

• Logistics centres

• Waste and material handling

• Workshops

• Maintenance departments

• Internal material transport

• Industrial production environments

Delivery and Request for Quotation

SALESBRIDGES supplies the Heavy Duty Tipper Type SK to professional customers throughout the Netherlands and across Europe.

For pricing, availability, delivery times, model selection, colours, optional configurations or an RFQ, please contact SALESBRIDGES.

Email: [email protected]
Tel.: +31 6 52883848
