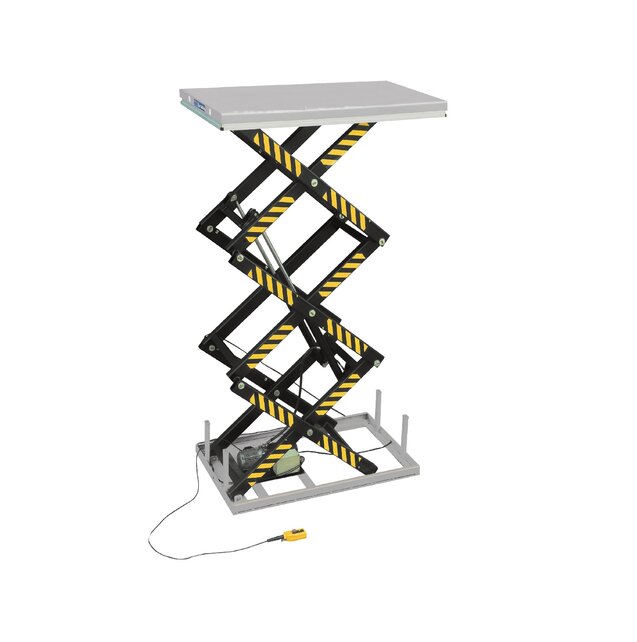

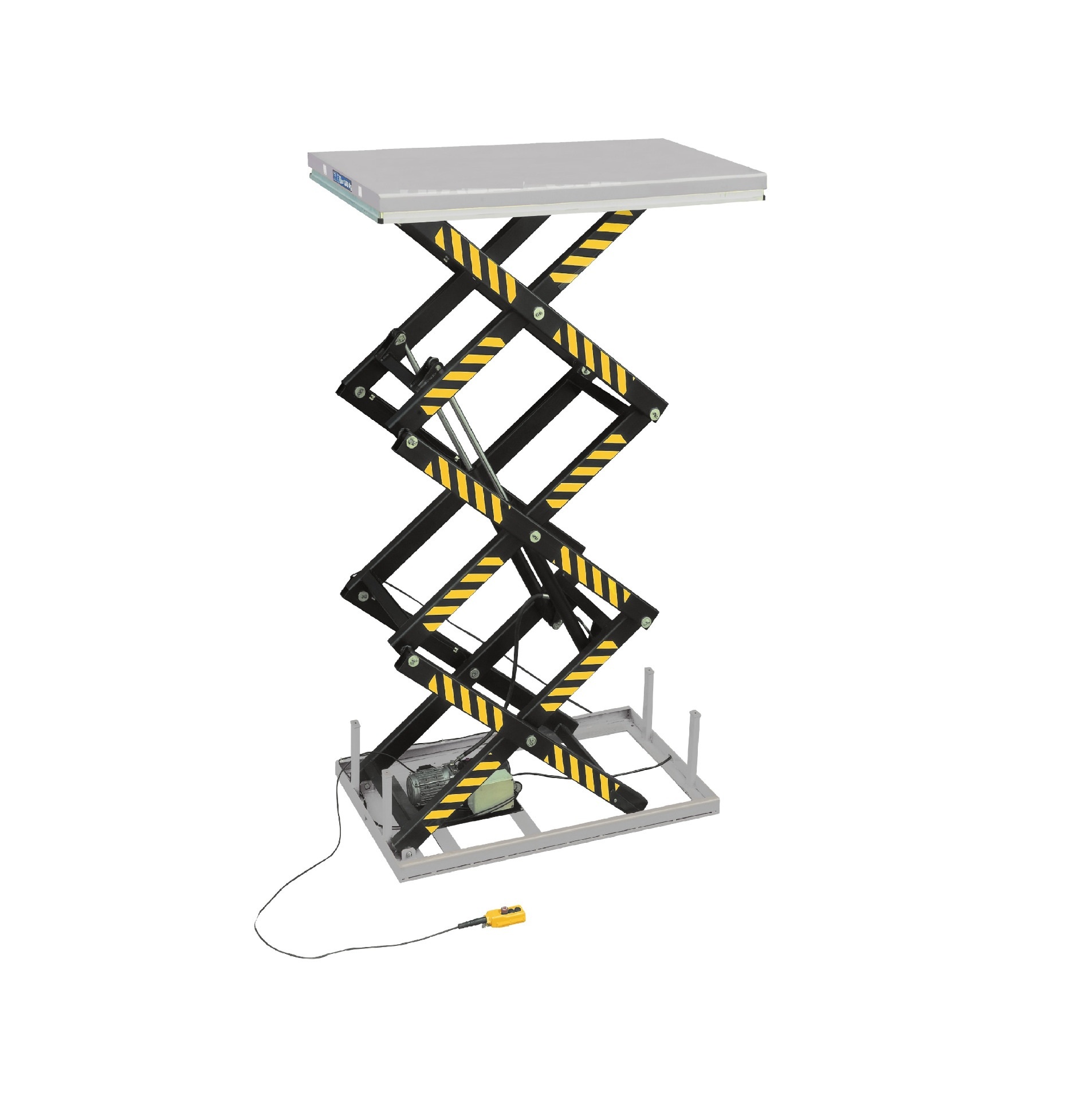

The SBHT1000 Heavy Duty Stationary Triple Scissor Lift Table is engineered for intensive industrial applications requiring high lifting heights, maximum stability, and safe handling of long or bulky goods. With a 1000 kg lifting capacity and a large 1700 × 1000 mm platform, this lift table is ideal for production lines, assembly areas, warehouses, and logistics operations.
Designed for fixed floor installation, the SBHT1000 ensures exceptional rigidity and operational safety. Maintenance-free pivot bushings, a high-quality hydraulic system, and advanced safety components make this lift table a reliable long-term investment for demanding environments.
Key Features & Benefits
-
Heavy-duty triple scissor design for high lifting applications
-
High lift stroke up to 2530 mm, suitable for ergonomic working heights
-
Fixed installation with bolted floor joints for maximum stability
-
Maintenance-free pivot bushings for reduced service costs
-
Large safety clearance between scissors to minimize injury risk
-
Hydraulic lift cylinder with internal drainage for long service life
-
Safety valve for protection in case of hose burst
-
Low-noise hydraulic power pack with built-in overload valve
-
Safety switch in top position and adjustable limit switch for precise height control
-
4 integrated end-stops and 4 lifting loops, suitable for pit installation
-
3-phase power supply (380V / 16A) for industrial-grade performance
-
Fully compliant with EN1570-1
Typical Applications
-
Handling of long goods and heavy components
-
Ergonomic height adjustment for assembly and production lines
-
Warehouse and logistics lifting operations
-
Fixed industrial workstations and platform integration
Technical Specifications
| Specification | Value |
|---|---|
| Model | SBHT1000 |
| Lift Type | Triple scissor |
| Capacity | 1000 kg |
| Platform Size (L × W) | 1700 × 1000 mm |
| Base Frame Size (L × W) | 1660 × 1000 mm |
| Lifting Height | 470 – 3000 mm |
| Stroke Length | 2530 mm |
| Lifting Time (to max height) | 45 – 50 seconds |
| Motor Power | 2.2 kW |
| Power Supply | 3-Phase, 380V / 50Hz / 16A |
| Weight | 450 kg |
| Standard | EN1570-1 compliant |
Request a Quote (RFQ)
For pricing, customization options, or technical consultation, please contact Salesbridges:
Email: [email protected]
Phone: +31 6 5288 3848
The SBHT1000 Triple Scissor Lift Table delivers powerful performance, superior safety, and long-term reliability for professional industrial lifting applications.
