Product description

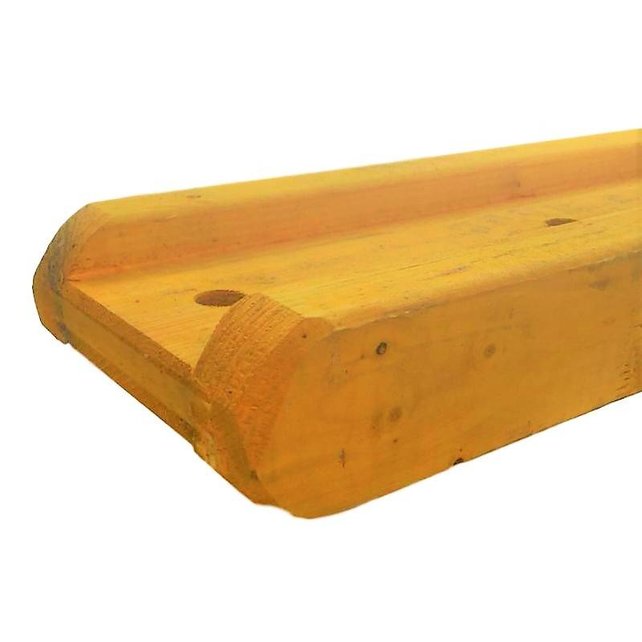

H Beam H20 for Formwork

Multiple use, long lifespan, cost-efficient H20 beams for Formwork.

Specifications

  • Permitted bending moment M = 5.0 kNm
  • Permitted transverse strength T = 11.0 kN
  • Characteristic limit of the transverse strength Vk = 23.9 kN
  • Characteristic limit of the bending moment Mk = 10.9 kNm
  • Used Spruce in compliance with DIN 4074-1 1
  • License number: Z-9.1-647

Dimensions

  • Lengths from 1.45 m up to 5.90 m
  • Width = 80 mm
  • Height = 40 mm
  • Weight = 5.0 kg/lin.m

#

Length (mm)

Weigth (kg)

Article Number

1

1450

7,25

SBFWH20B145

2

1800

9,00

SBFWH20B180

3

1950

9,75

SBFWH20B195

4

2150

10,75

SBFWH20B215

5

2450

12,25

SBFWH20B245

6

2650

13,25

SBFWH20B265

7

2900

14,50

SBFWH20B290

8

3300

16,50

SBFWH20B330

9

3600

18,00

SBFWH20B360

10

3900

19,50

SBFWH20B390

11

4500

22,50

SBFWH20B450

12

4900

24,50

SBFWH20B490

13

5900

29,50

SBFWH20B590



Export to Africa (including certificates preparation)

Factory prices.

Made in EU

Contact us at any time for questions and support at [email protected]







Product information
Brand SalesBridges
Article code SBFWH20B145
SKU SBFWH20B145
EAN 2001813342286
