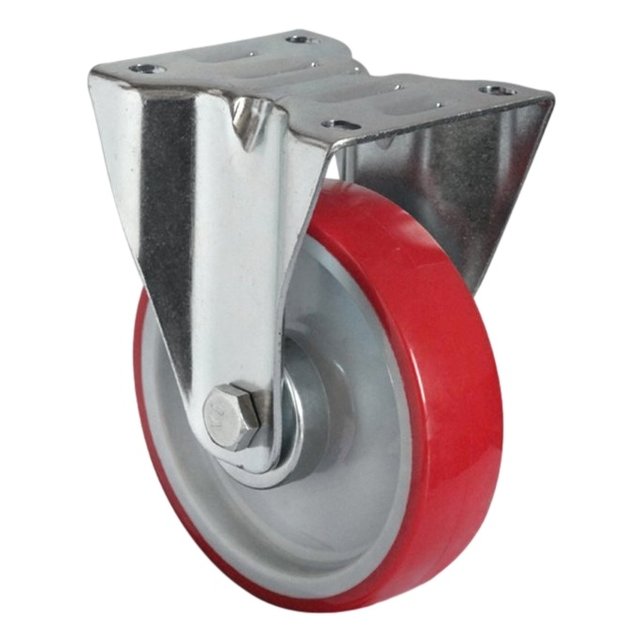

CASCOO Fixed wheel PU  red 160 mm diameter 300 kg load capacity
Fixed wheel PU red 160 mm diameter 300 kg load capacity
€0,00 Incl. tax
CASCOO

Fixed wheel PU red 160 mm diameter 300 kg load capacity

Price on request

Fixed wheel with plate mounting, without brake, PU version, 160 mm wheel diameter and 300 kg carrying capacity per wheel.

In stock
3-5 days
Quantity
- +
Product description

Fixed wheel

160mm 300kg

PU red



Specification

  • Wheel material: PU red
  • Wheel diameter: 125 mm
  • Tread width: 46 mm
  • Hub width: 59 mm
  • Load capacity: 300 kg
  • Dimensions mounting plate: 105x80 mm
  • Distance bolt holes: 80 / 77x60 mm
  • Bolt size: M12
  • Plate thickness: 3 mm
  • Total height:  195 mm
  • Wheel bearing: Roller bearing
  • Housing surface: zinc blue
  • Temperature: - 40 to + 80 ° C
  • Standard: EN 12532


Swivel castor without brake with a diameter of 160 mm and a load capacity of 300 kg. This wheel is made entirely of Polyurethane and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!




PU wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.




Do you need advice? Contact us immediately via email [email protected] or telephone +31652883848

Product information
Brand CASCOO
Article code SBWH160-01BPU1
SKU SBWH160-01BPU1
EAN 9507828458750
