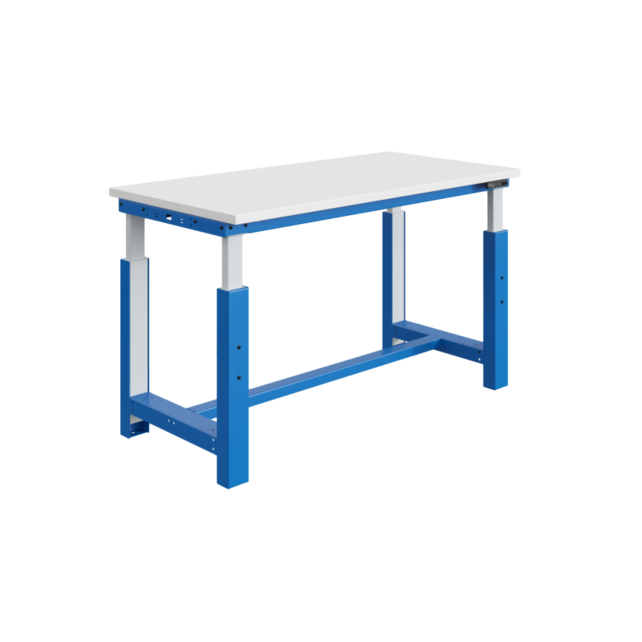

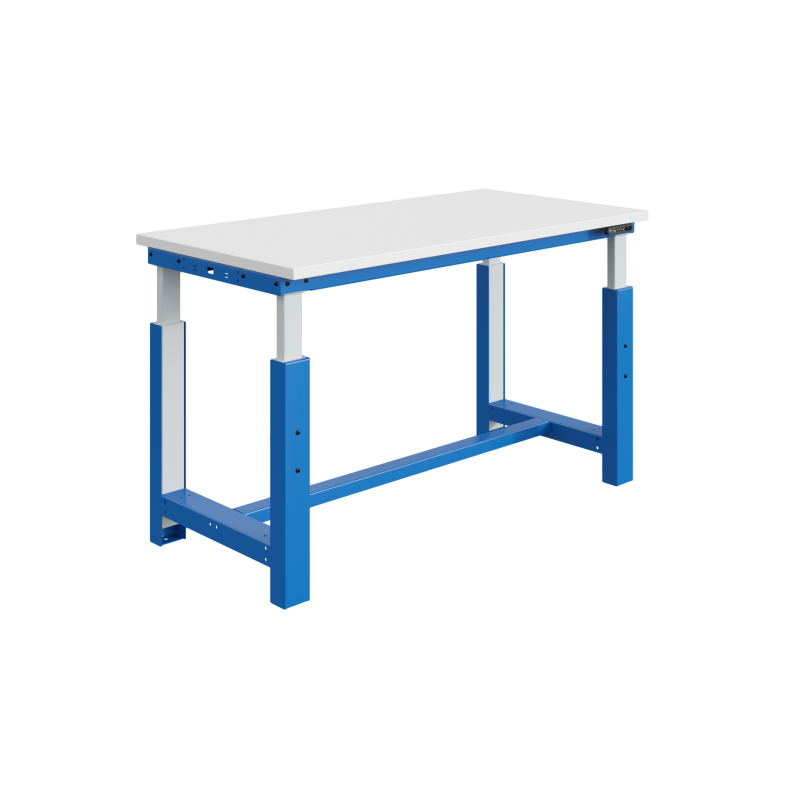

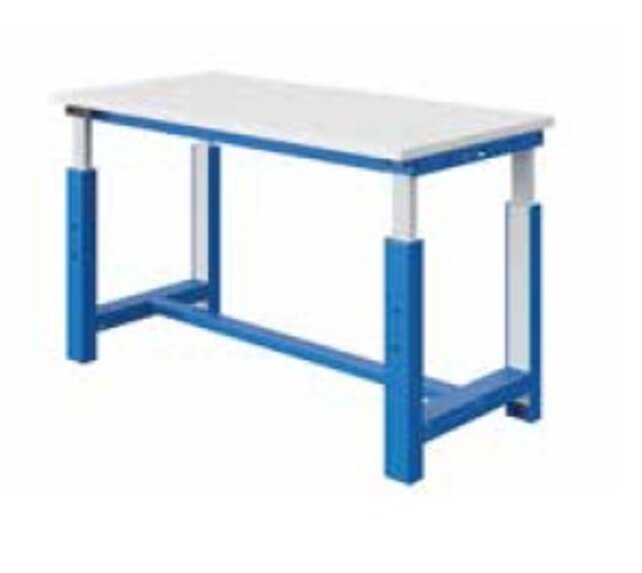

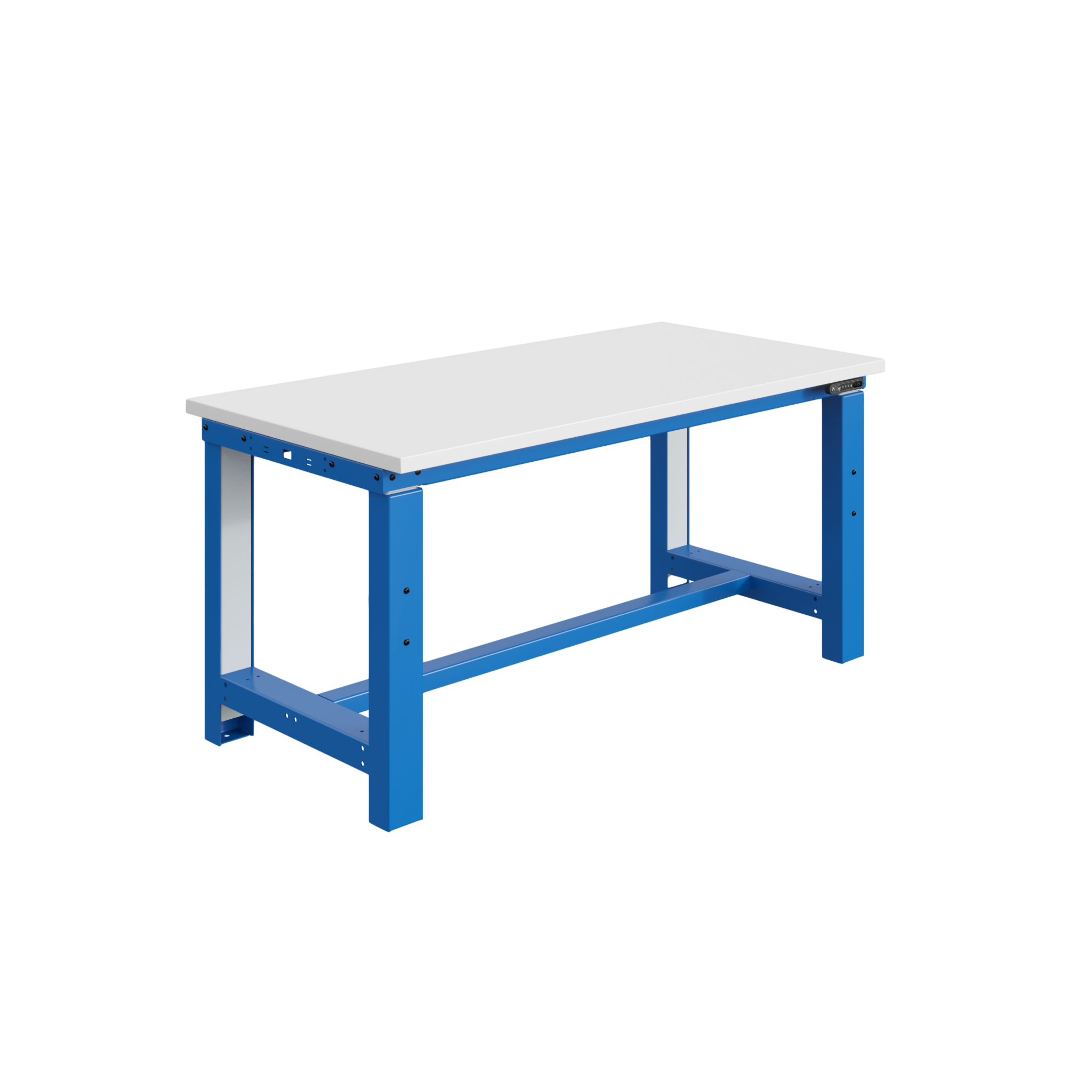

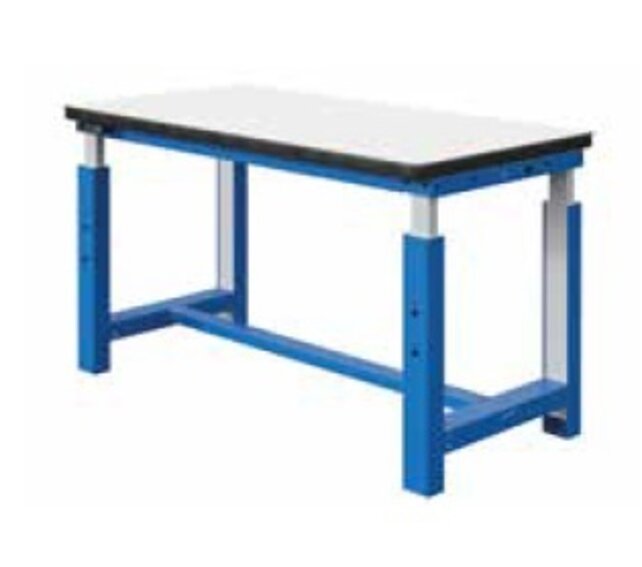

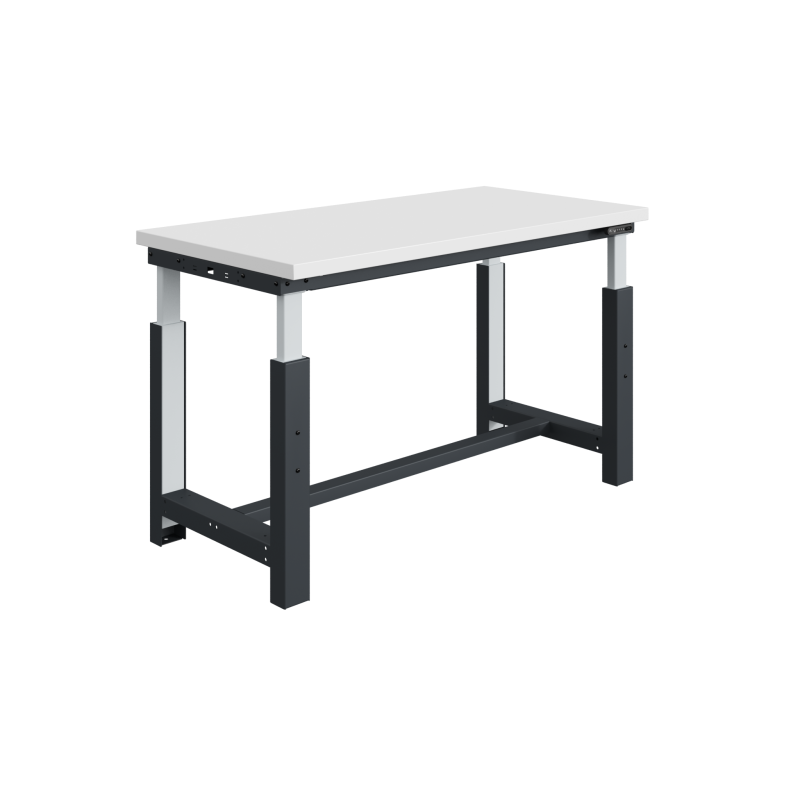

ESD Electrically height-adjustable worktable SI-model industrial blue 300 kg heavy duty

ESD Mechanically height-adjustable workbench or worktable with steel frame and 300 kg capacity

Workshop furniture SI model

ESD version

Industrial Blue RAL 5015

High-quality ESD ergonomic design. Mechanically height-adjustable. Choice in different tabletops and frame colours.

Create a safe and healthy workplace in an instant. Prevent health complaints due to incorrect work posture and accidents. Ergonomic workplaces help to achieve more efficiency and productivity.

Workplaces with attention to high-quality ergonomics that meet the highest requirements. Modern design and particularly robust. Sustainably produced in France.

SI MODEL WORK TABLES AND WORK BENCHES

Steel frames finished with ESD epoxy powder paint and polymerized in an oven at 180 ° C. Better protection of the user against injury, because no visible screws or bolts remain after installation.

ELECTROSTATIC DISCHARGE

ESD or Electro Static Discharge is the rapid passage of electrical current between two objects of different electrical potentials. ESD is caused by a build-up of static electricity due to the separation of electrical charges which are produced when two materials are placed together and then separated. This break of contact between the two materials generates a charge, which in turn creates an electrical potential difference which could result in an ESD. The electronics industry is particularly concerned by the risk of undesirable leakage current which could damage electronic equipment such as integrated circuits.

TECHNICAL ACCOMPANIMENT
Protection against the undesirable effects of electrostatic discharge requires earthing of all elements on the work zone. The entire working environment in the zone must therefore be taken into account: floor, furniture and persons must all be connected to earth. An ESD zone must be created i.e. an insulated zone where
electronic components are handled. The zone guarantees the absence of electrical charge.
Worktops: The ESD worktops are made of laminated panels loaded with carbon to ensure circulation and evacuation of static electricity.
Painting: a specific, semi-conducting paint RAL 7035 (other colors: contact us) loaded with carbon also ensures evacuation of static electricity.
Connection elements: electrical braiding or earthing kits for elements or employees complete this evacuation process. Specific jacks or castors are used to earth the furniture and/or seats.
Isolation elements: certain elements in the other hand must be
insulated. Insulating foam kits are used to achieve this objective by
interrupting the circulation of electrostatic current.

MEANS OF PROTECTION
There is no single method, but rather a multitude in order to create an ESD zone. The first step involves compilation of the required protection specifications indicating the degree of protection expected and the earthing system. It must include an information and staff training folder for persons present in the ESD zone
indicating the equipment to be worn and movement limitations for themselves as well as the elements handled.
The zone must be considered as a whole: floor, furniture, clothing, components, etc.

A COMBINED ACTION
The products in the catalogue such as workbenches or workstations, trolleys and seats may all be equipped with ESP anti-static protection.

The ESD furniture proposed is compliant with the protected environment standard IEC 61340-5-1.

Specifications and options

DIMENSIONS OF TABLES:

• Width: 75 cm / 100 cm

• Lengths: 75, 100, 120, 150, 180, 200 and 224 cm

• Height: 73 - 113 cm

TABLE TOP:

• ESD ANTISTATIC laminate 30 mm thick

Heat resistant up to 180 ° C, scratch resistant, wear resistant, fire resistance

Surface resistance with grounding: 1 × 104 to 9 × 105 Ohm Surface resistance: 1 × 105 to 9 × 106 Ohm / Cross-sectional resistance: 1 × 105 to 9 × 106 Ohm / Meets NF standard

EN 61340 S-1 / Electrostatic connection is located underneath the earth basin to dissipate static electricity

Common applications: Electronics, electromechanics, IT, metrology

EXTRA OPTIONS:

The SI-model work tables or work benches can also be equipped with a galvanized shelf, which serves as an extension for storing tools, footstool, etc.

Not all dimensions, table top options and frame colors are available online. However, a lot is possible on request.

Made in France

We are happy to help you with all your questions. You can contact us by email at [email protected]. We can be reached by phone during office hours on +31 (0) 652883848.
