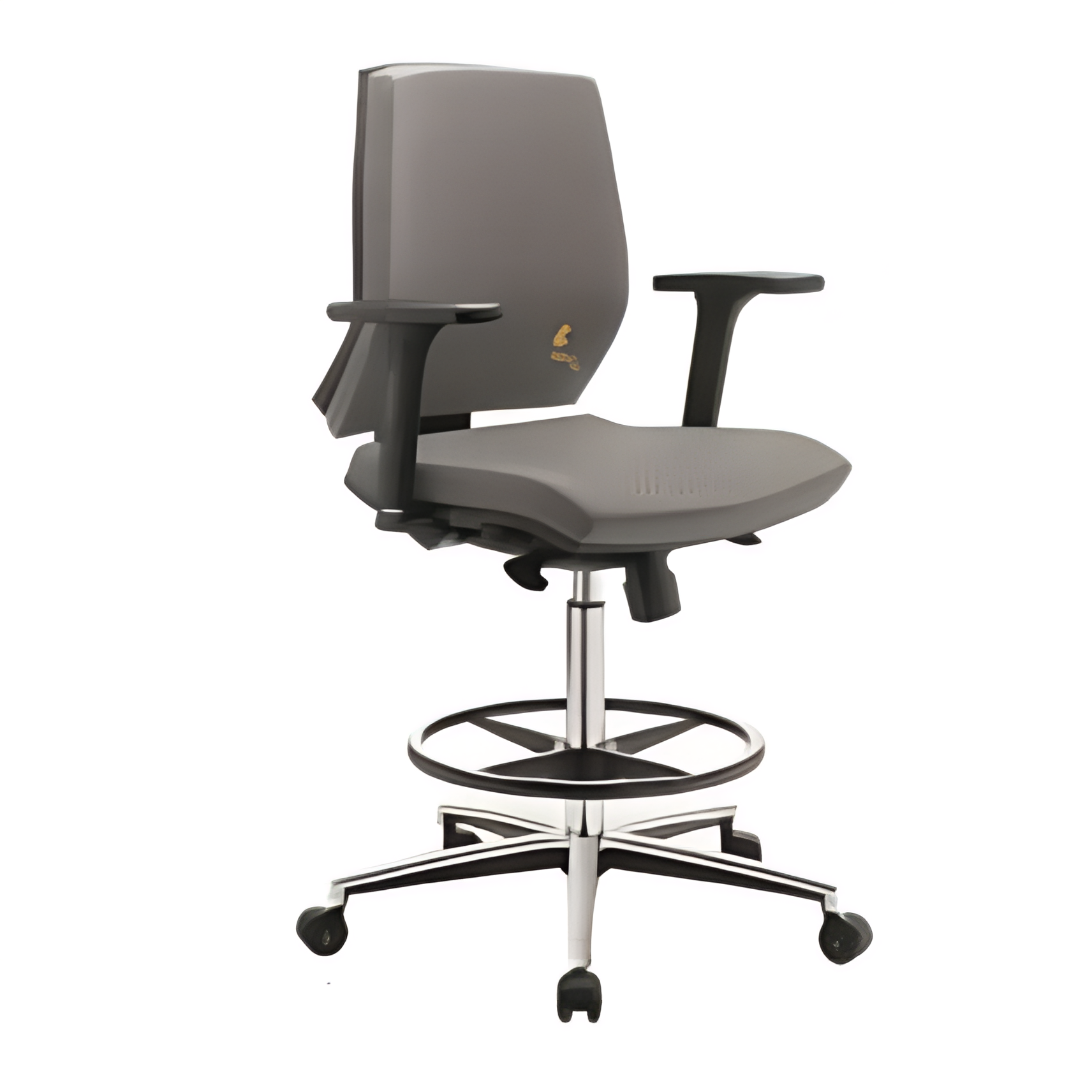

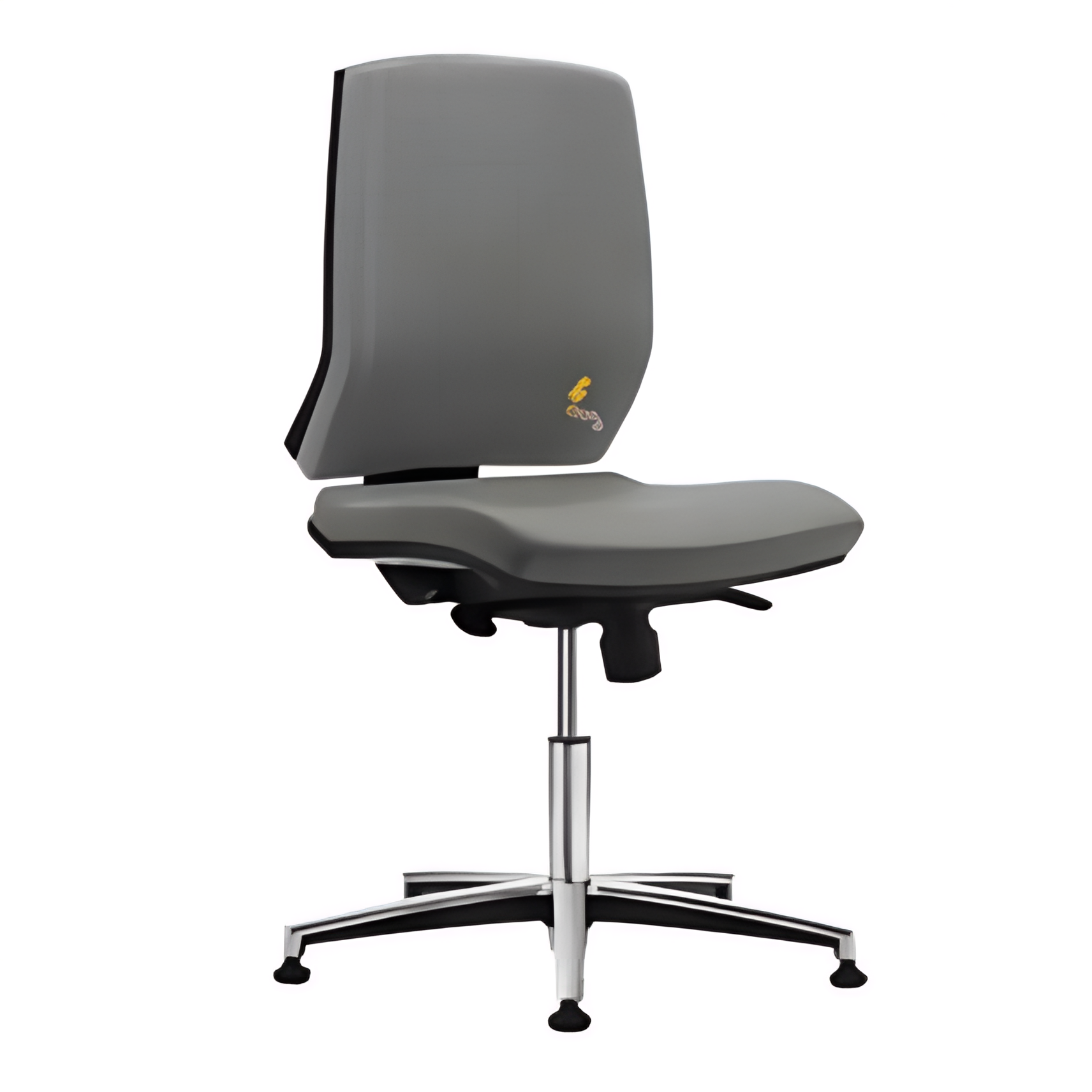

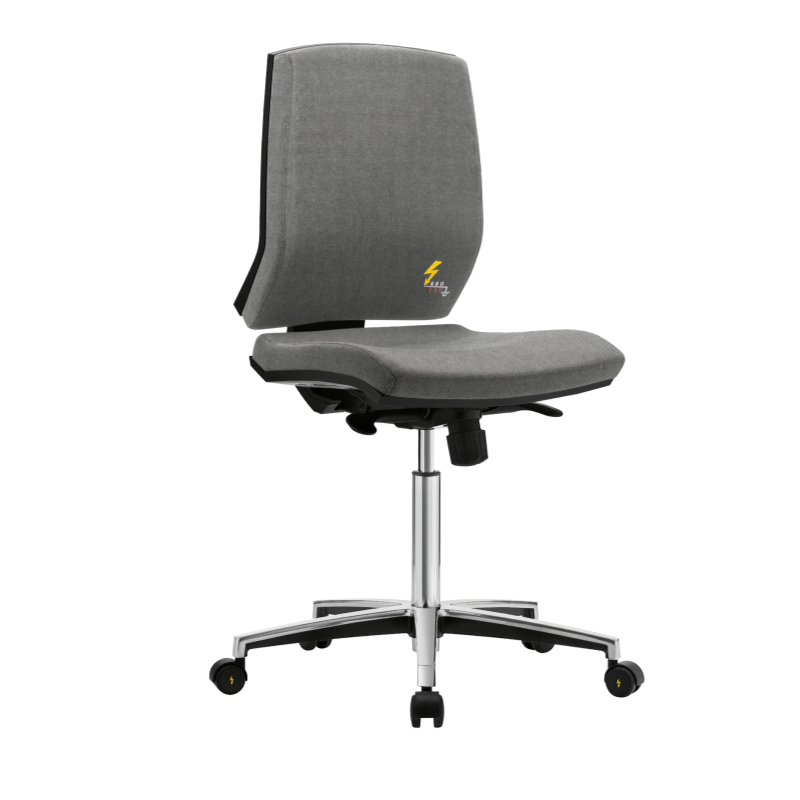

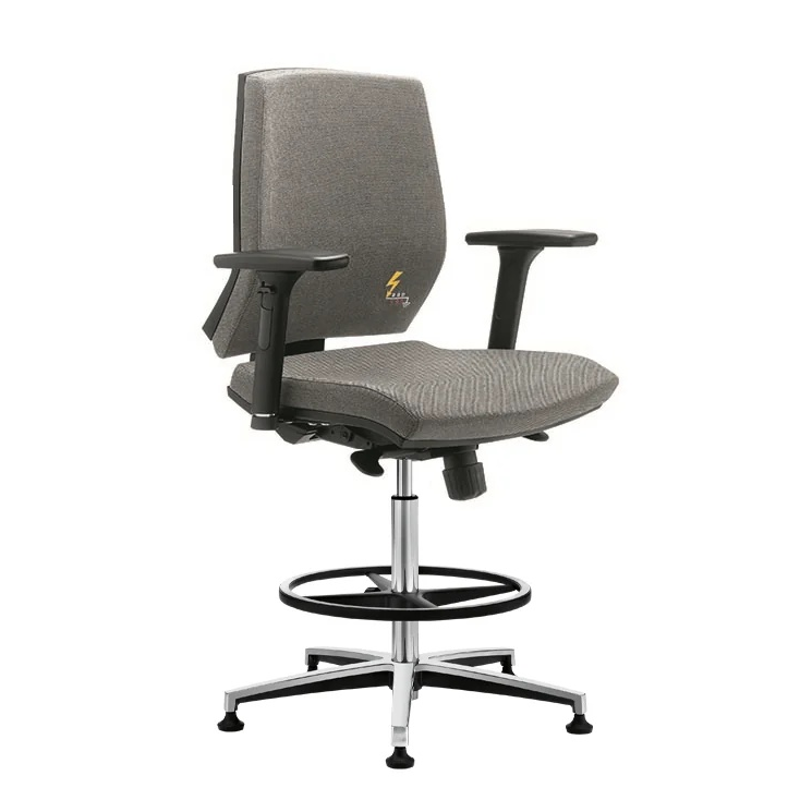

Ergonomic ESD Chair 550-740 mm with Aluminium Base

Create your own review

EUR 715,00 Excl. tax

EUR 865,15 Incl. tax

Excl. Shipping costs

Ergonomic ESD chair for EPA and electronics workplaces. Antistatic flame-retardant seat, synchronous mechanism and polished aluminium base. Available with conductive pads or castors.

In stock

4-5 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

Ergonomic ESD chair for electrostatic-sensitive workplaces

This robust ESD chair is designed for professional EPA zones, electronics assembly, laboratories and technical production environments. Dissipative materials help discharge electrostatic charge in a controlled manner, while the ergonomic construction supports comfortable prolonged use.

Key features

Seat height adjustable from 550 to 740 mm by a gas lift with 135 mm travel
Dissipative, antistatic and flame-retardant polypropylene seat
Matching dissipative polypropylene backrest
Synchronous mechanism with a predetermined seat-to-backrest angle ratio
Polished five-branch aluminium base, diameter 680 mm
Choice of conductive pads or conductive castors
Suitable for ESD-protected workplaces and EPA zones

Technical specifications

Feature	Specification
Seat height	550-740 mm
Gas-lift travel	135 mm
Seat	470 x 480 mm, dissipative polypropylene
Backrest	400 x 450 mm, dissipative polypropylene
Base	Polished aluminium, 5 branches, diameter 680 mm
Castors	Conductive reinforced copolymer with steel, diameter 50 mm
Pads	Conductive reinforced copolymer with steel, diameter 65 mm, height 40 mm
Seat-depth adjustment	With or Without
Standards	IEC 61340-5-1, IEC 61340-5-2, IEC 61340-2-3, EIA IS 541 A, EN 61340-2-1

Delivery and quotation

SALESBRIDGES delivers throughout the Netherlands and across Europe. For availability, technical advice or an RFQ, contact [email protected] or +31 6 52883848.
