Dynamometer 04 – Digital Force Gauge & Crane Scale (1.25t - 20t) – IP65
Buy the Dynamometer 04 at SALESBRIDGES. IP65 digital force gauge (1.25t-20t) with LCD display, peak hold, and tare functions. Includes case & calibration report. Fast delivery in NL, BE, and Europe. Contact us for a quote today!
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list

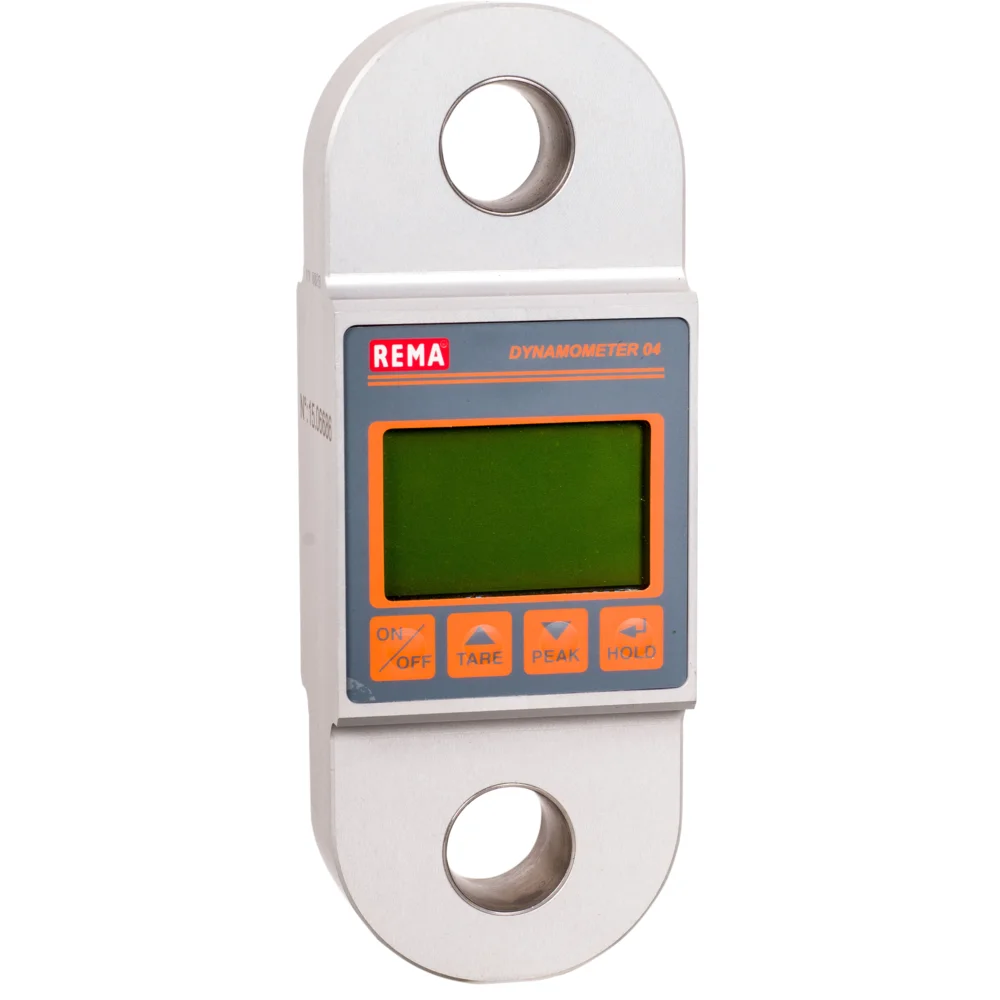

Dynamometer 04 – Industrial Digital Force Gauge
The Dynamometer 04 is a robust and highly accurate digital force gauge designed for heavy-duty industrial applications. Featuring an anodized aluminum housing and IP65 protection class, this device is resistant to dust and moisture, making it ideal for use in warehouses, construction sites, and offshore environments.

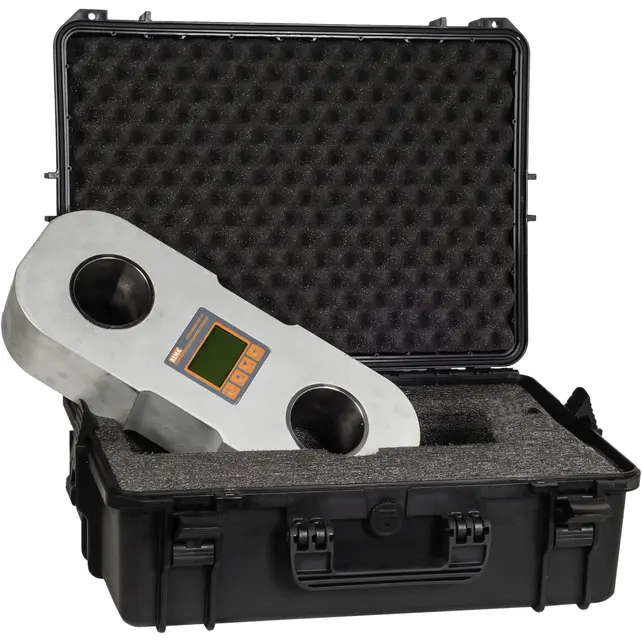

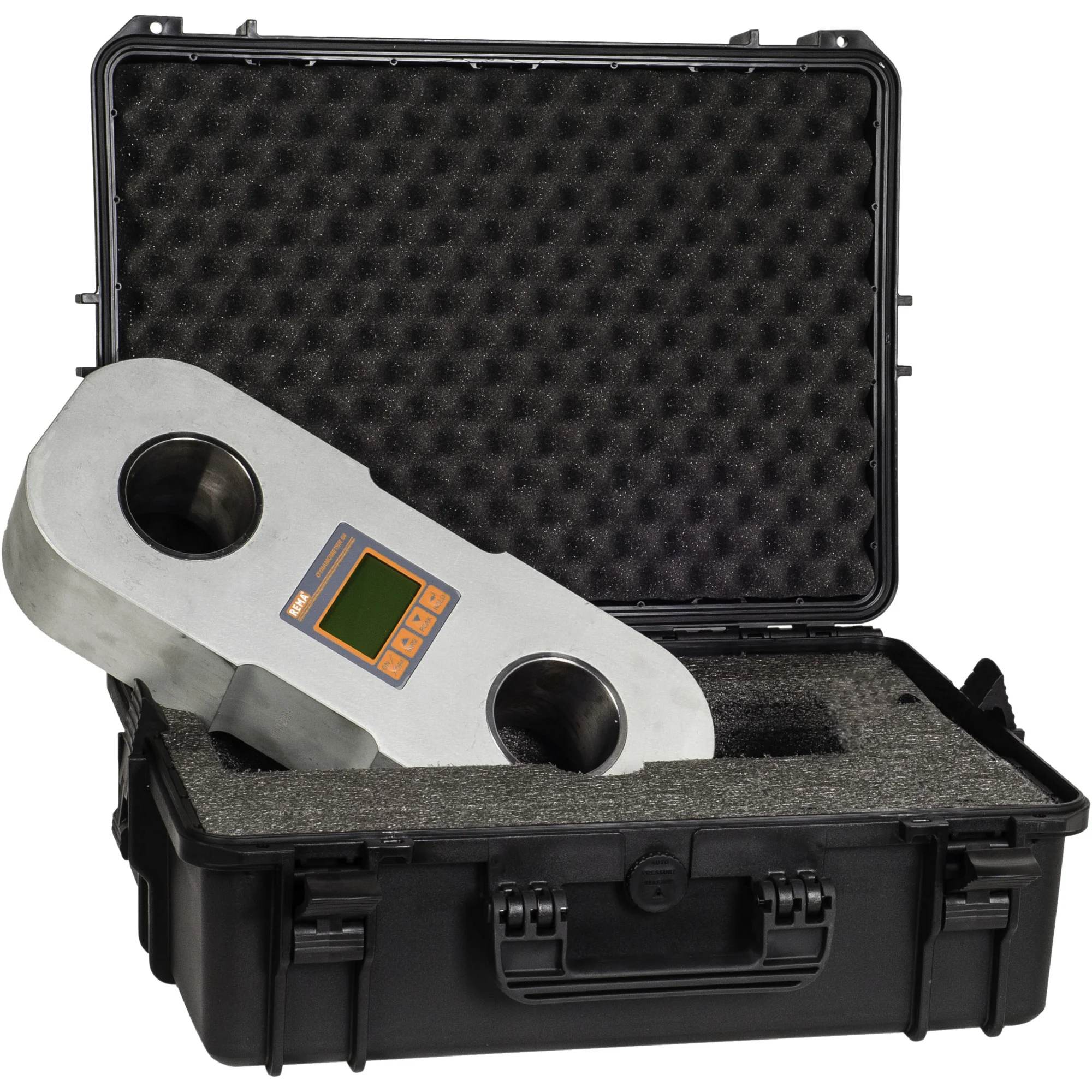

This versatile instrument offers essential functions such as tare, peak value hold, and current weight hold. The clear LCD display ensures easy reading even in challenging conditions. The Dynamometer 04 comes complete with a plastic carrying case, manual, and calibration report, ensuring you are ready to work with certified equipment immediately.
Key Features
- Robust Construction: Anodized aluminum housing with IP65 protection.
- High Accuracy: Up to approx. 0.15% of the reading value.
- Safety: Safety factor 5 x WLL and overload indication at 10%.
- User-Friendly: Simple menu with ON/OFF, tare, peak value, and hold buttons.
- Complete Set: Includes 9V alkaline battery (approx. 100 hours operating time), case, and certificates.
- Flexible Units: Switchable between kg, t, ton, lbs, daN, and kN.
Delivery and Service SALESBRIDGES delivers directly in the Netherlands, Belgium, and across Europe. We ensure fast and secure shipment of your measurement equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Housing | Anodized aluminum |
| Protection Class | IP 65 |
| Display | LCD, 5 positions, digit height 17 mm |
| Operating Temp | -10° C to + 55° C |
| Accuracy | Approx. 0.15% of reading value |
| Battery | 9V Alkaline (approx. 100 hours) |
| Safety Factor | 5:1 |
| Standards | EN 12100, EN 13155, EN 13889, CE-marked |
| Functions | Auto-reset, Tare, Peak-hold, Hold, Auto-off |
Available Models
| Model | WLL (ton) | Resolution (kg) | Weight (kg) |
|---|---|---|---|
| DSD04-1.25 | 1.25 | 0.5 | 0.73 |
| DSD04-2.5 | 2.5 | 1 | 1.35 |
| DSD04-5.0 | 5.0 | 2 | 1.85 |
| DSD04-10.0 | 10.0 | 5 | 3.6 |
| DSD04-20.0 | 20.0 | 10 | 7.07 |
Contact & RFQ Do you have questions or need a custom quote? Email: [email protected] Phone: +31652883848
| Brand | REMA |
| Article code | SB1508000 |
| SKU | SB1508000 |
| EAN | 9505183815829 |
