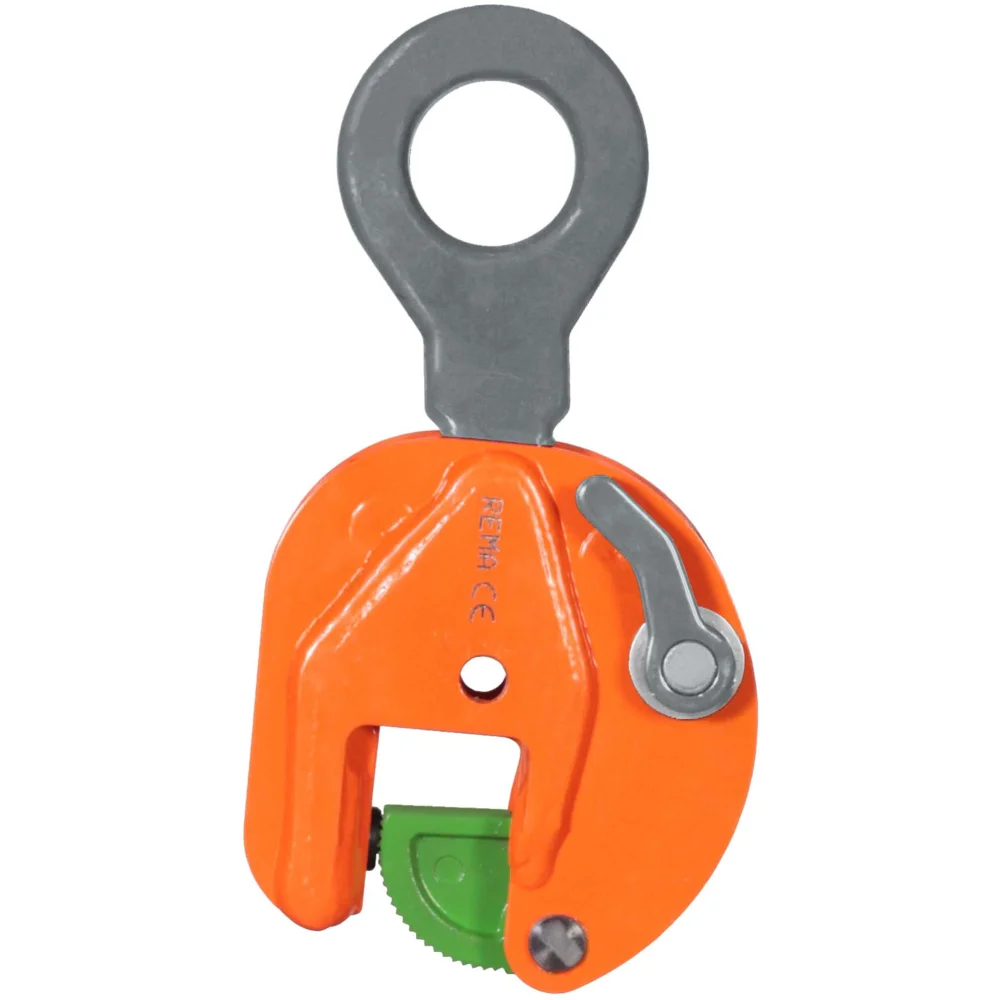

CS-H Vertical plate clamps for hard steel - 750-6000 kg

CS-H Vertical plate clamps for hard steel - 750-6000 kg

Vertical plate clamps for hard steel CS-H with 750-6000 kg. Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.

Key features

• Professional lifting equipment for controlled material handling in industry, workshops and construction. Select the variant according to working load limit, jaw opening and application.
• Factory-tested lifting equipment with a safety mechanism where applicable.
• Robust professional construction for repeated industrial use.
• Suitable for hard steel up to HRC 50 / 485 HB.
• Use only in accordance with the operating manual and inspect visually before every use.

Technical specifications

Properties

• Equipped with standard lifting eye, movable in one direction.
• Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

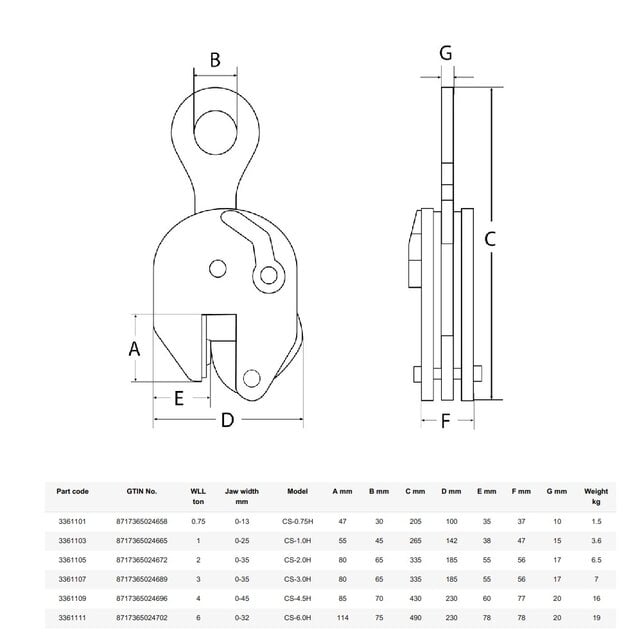

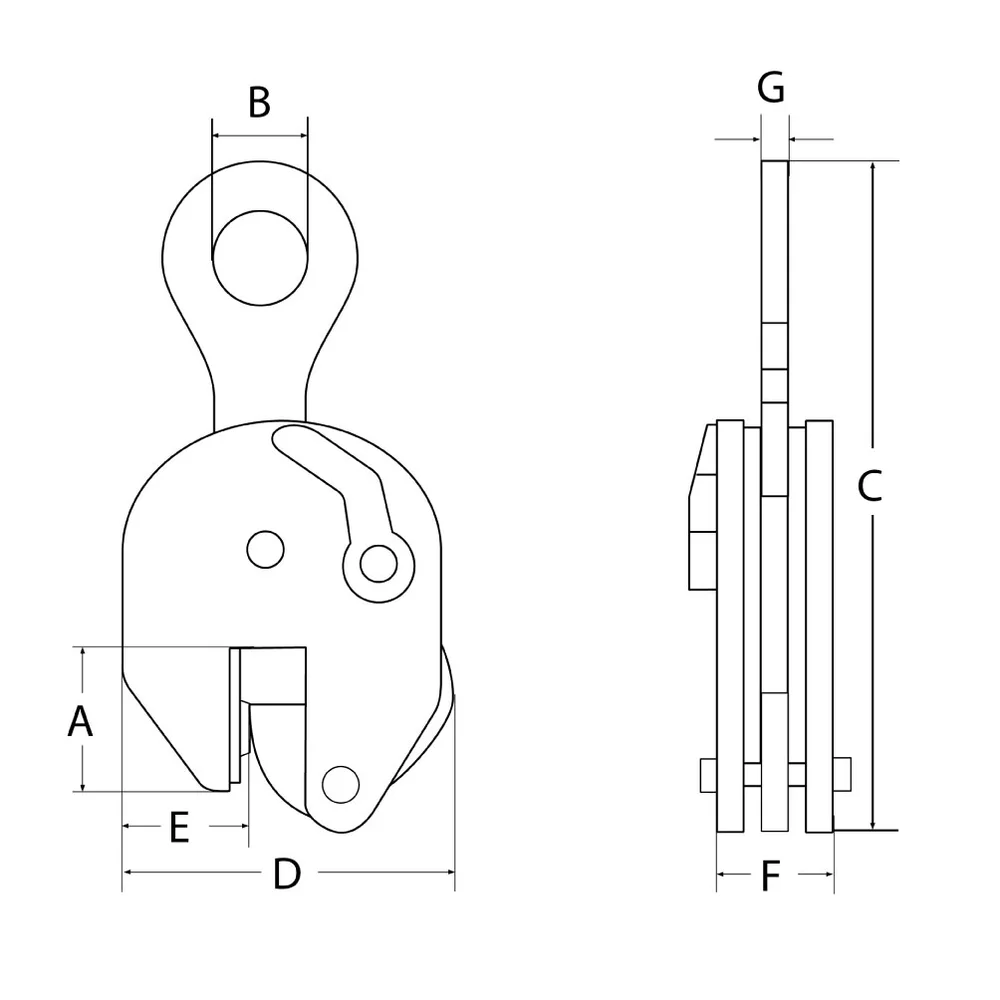

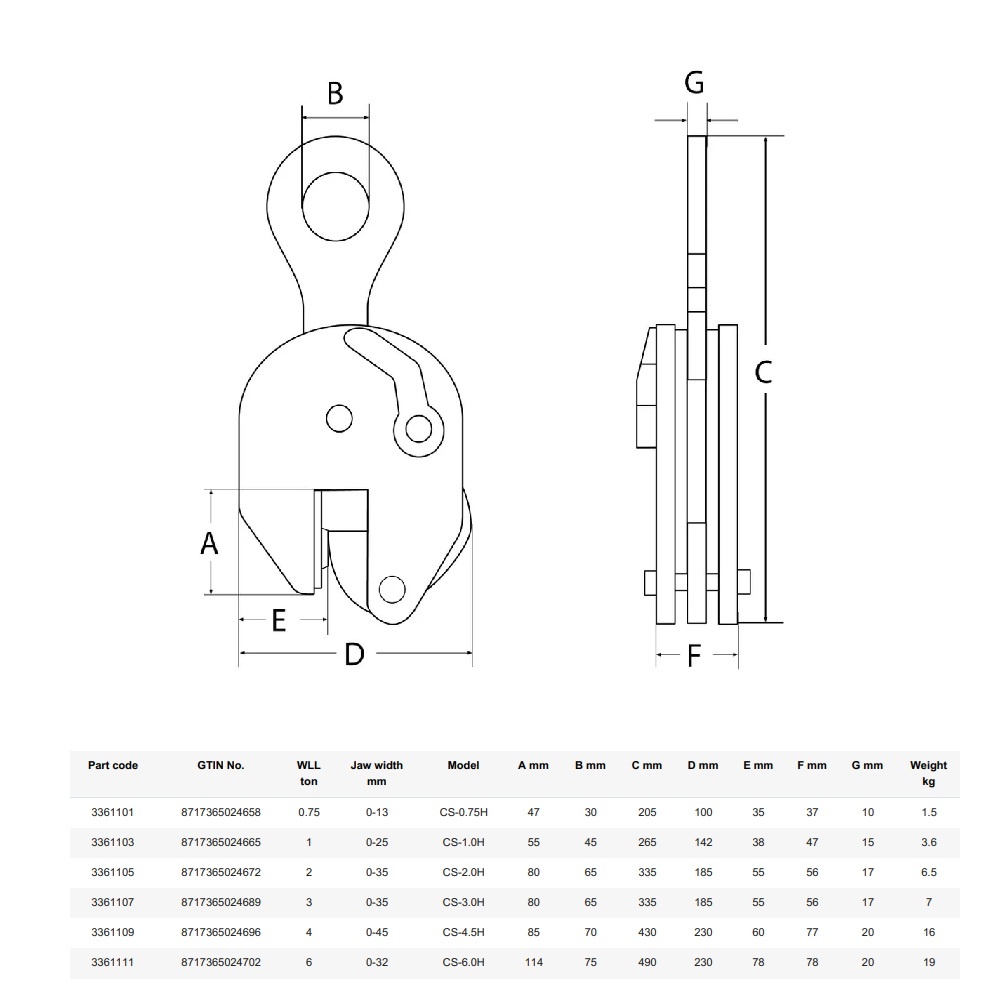

• WLL and size of the jaw opening are clearly indicated on the clamp.
• Safety factor of at least 5 x WLL.
• Each clamp is 2x WLL testloaded.

Application

• For lifting steel plates up to a hardness of 50 RC (485 HB).

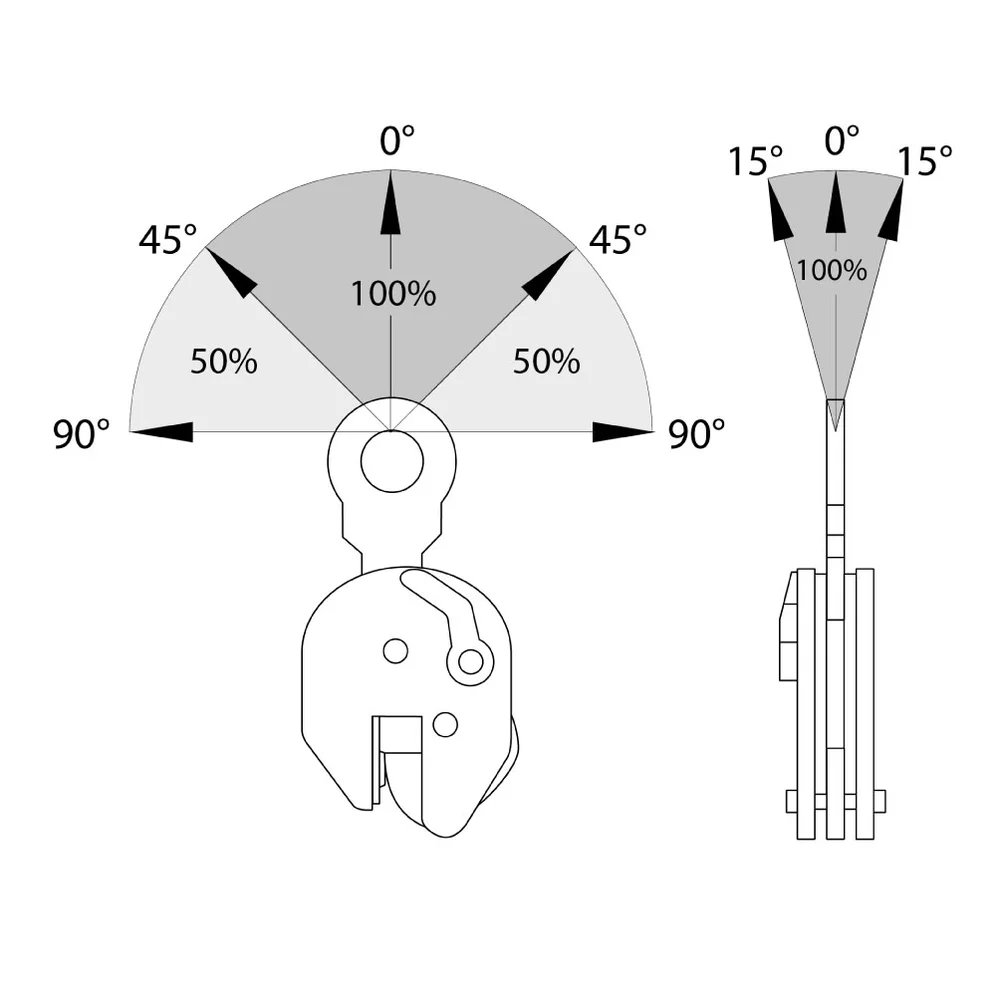

• Suitable for lifting, 180 ° turning and vertical transport of steel plates.

• Marking: According to standard, CE-marked
• Standard: EN 12100, EN 13155
• Note: Minimum weight to be lifted is 10% of the safe workload.

• Safety factor: 5
