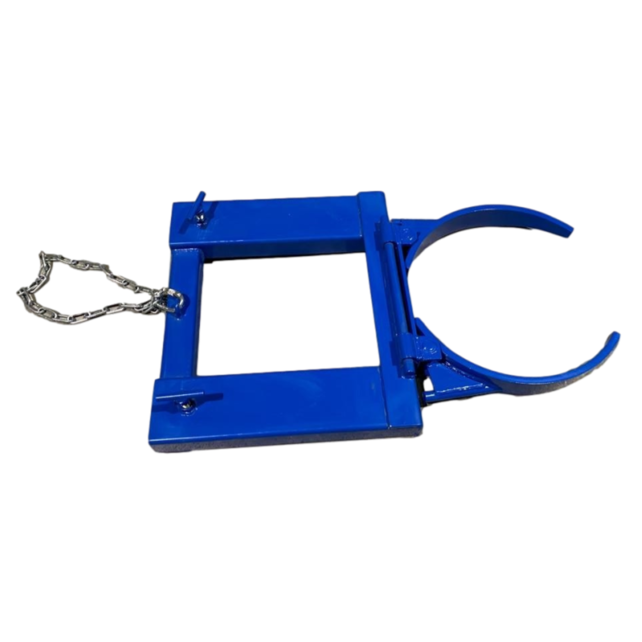

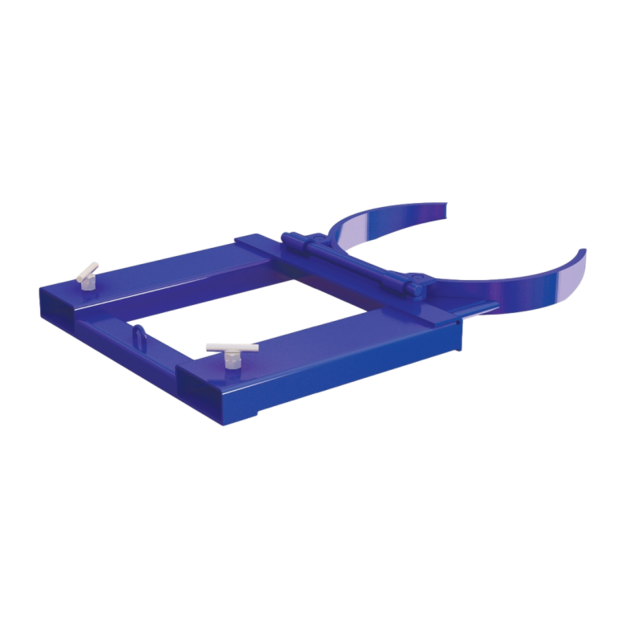

Barrel clamp for Steel Drum
Suitable for use with Forklift

Barrel clamp dimensions:

Length: 1113 mm

Width: 710 mm

Height: 120 mm

Barrel clamp weight: 50 kg

Load capacity: 300 kg

Finish: powder coating

Color: RAL5010

Suitable for steel drums:

Diameter barrel: 550 mm

Height of barrel: 800 mm

Barrel volume: 200L

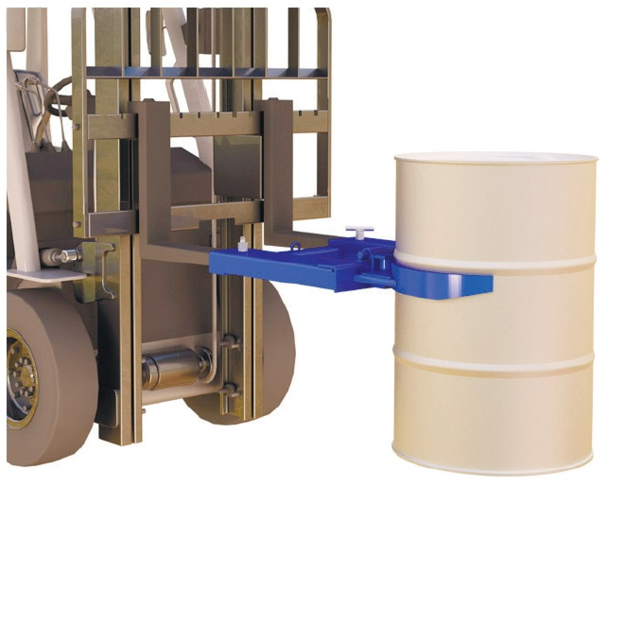

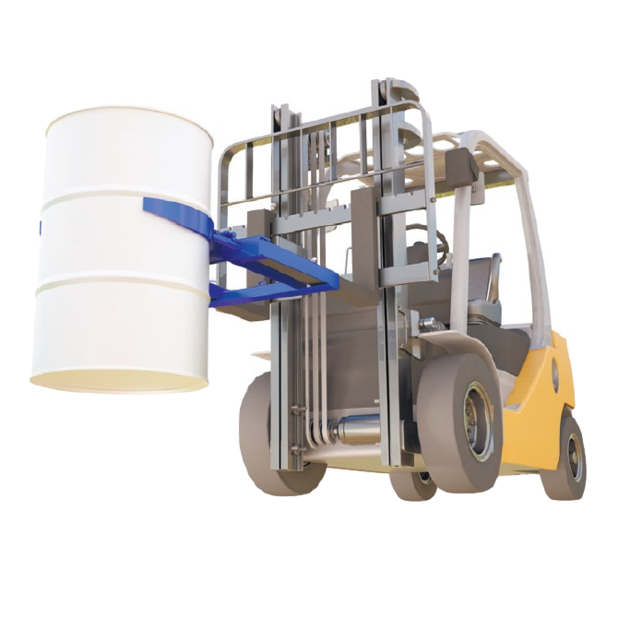

The drum clamp is slid onto the forks of the forklift. It is secured with 2 wing nuts. The forklift drives with the drum clamp onto the drum and puts the clamps on top of the drum. The barrel clamp is lowered to the center of the barrel. When the barrel is lifted, it is automatically clamped between the drum clamps. When the drum has to be disconnected again, the drum is placed on the ground and the forklift truck drives backwards. The clamps release automatically. The barrel clamp is suitable for 200L-210L drums.
