Adjustable Constant Level Trolley – 650x665x1170 Mm

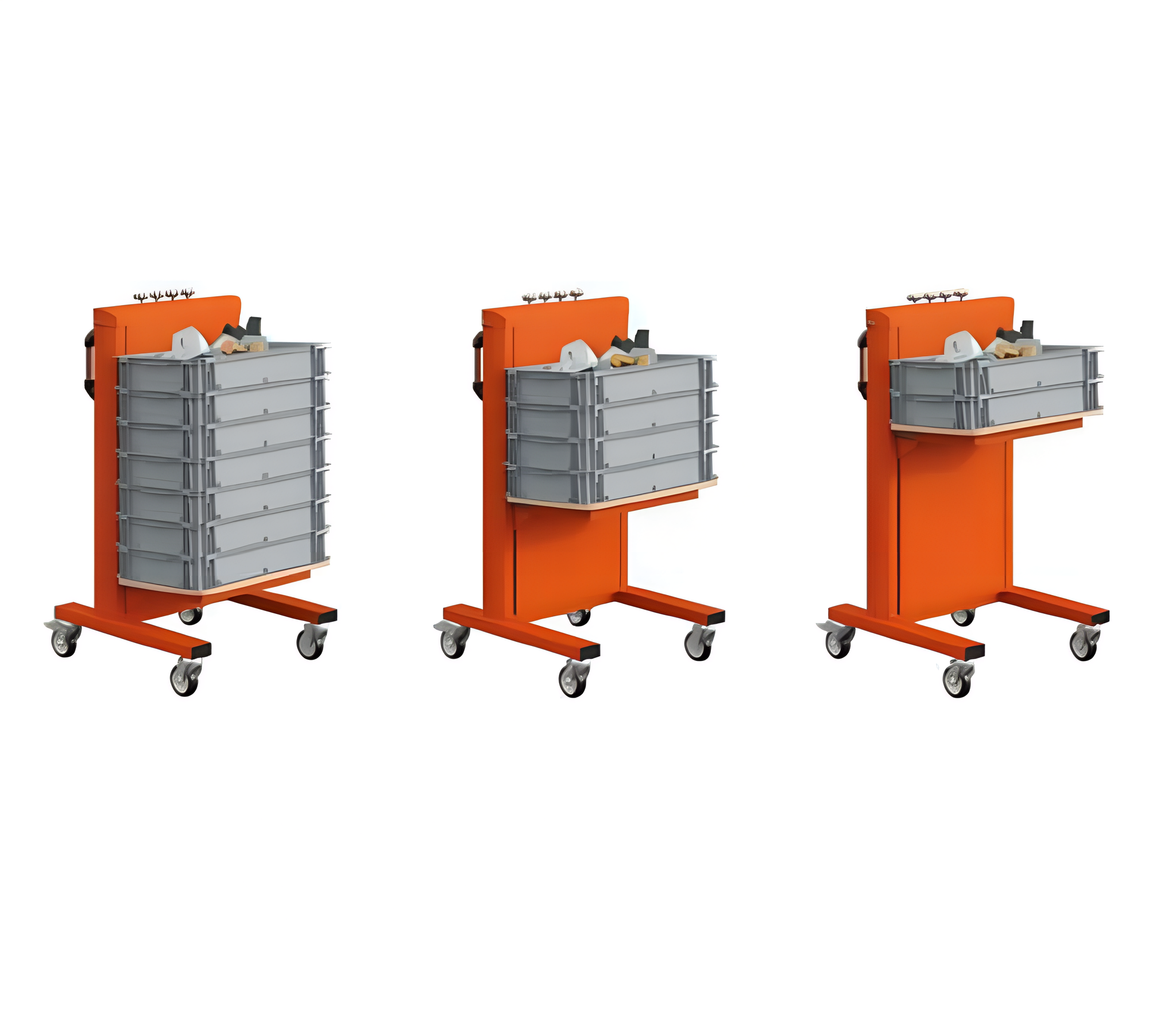

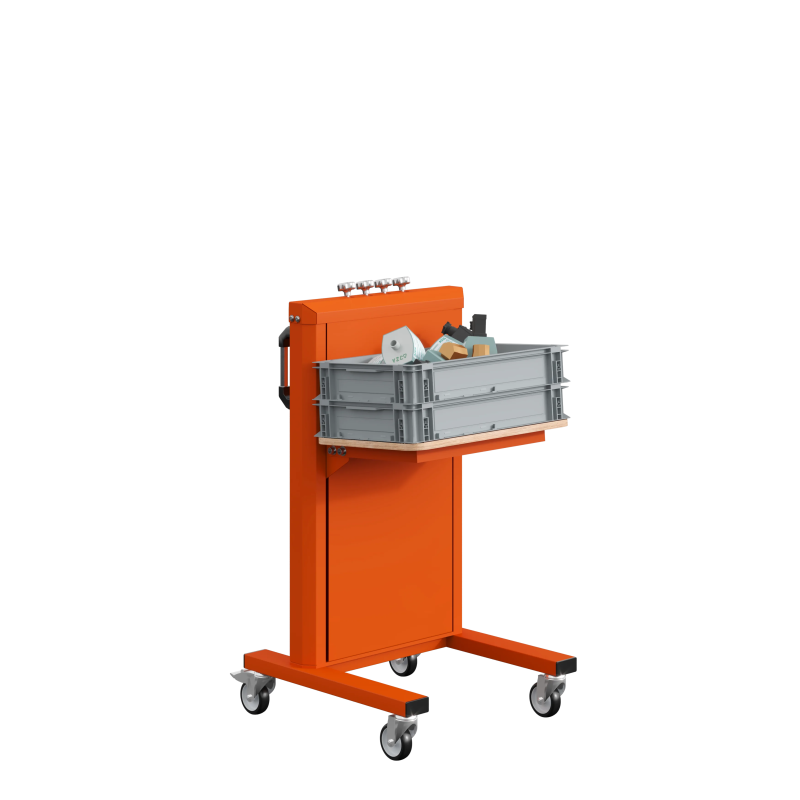

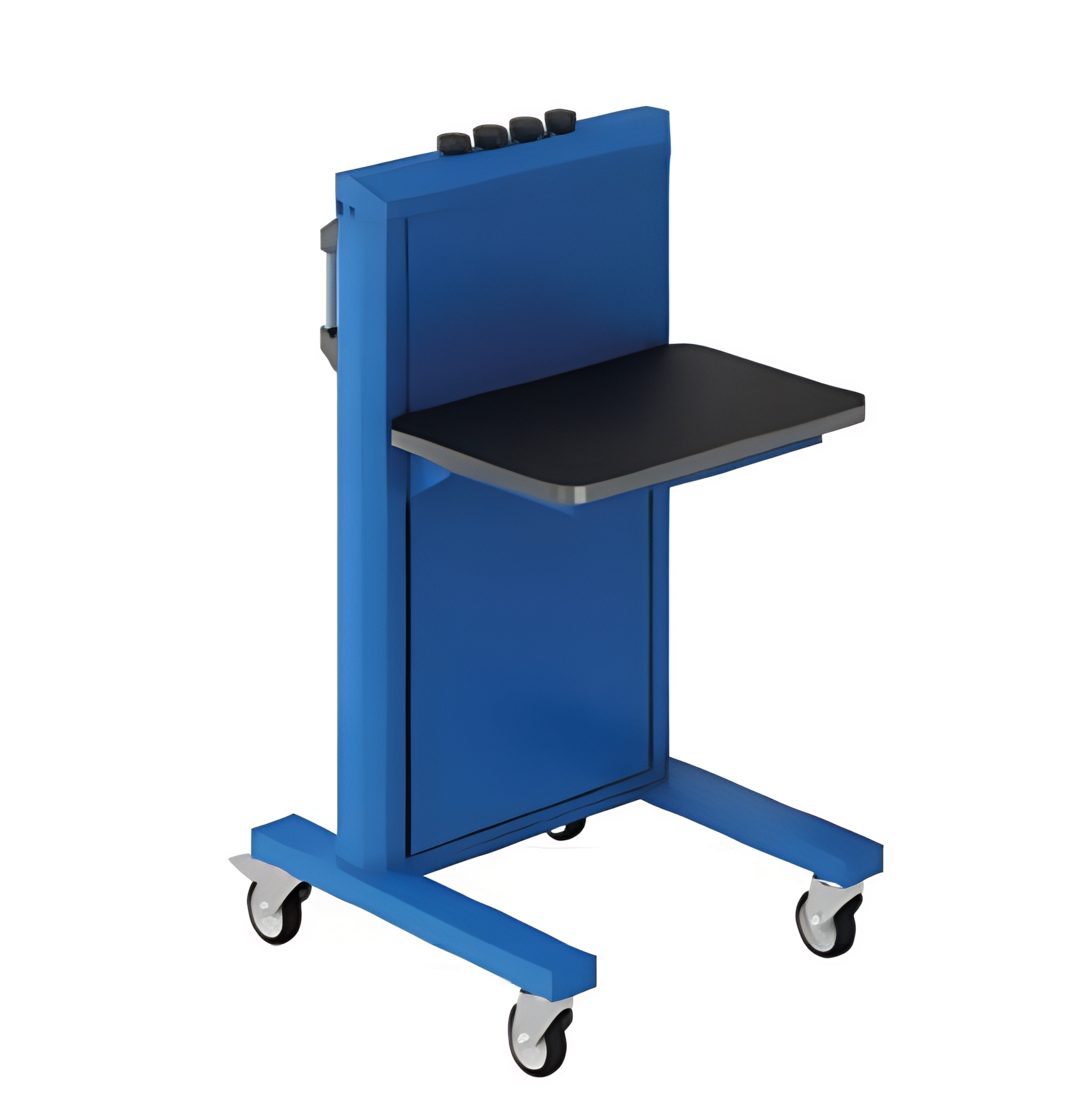

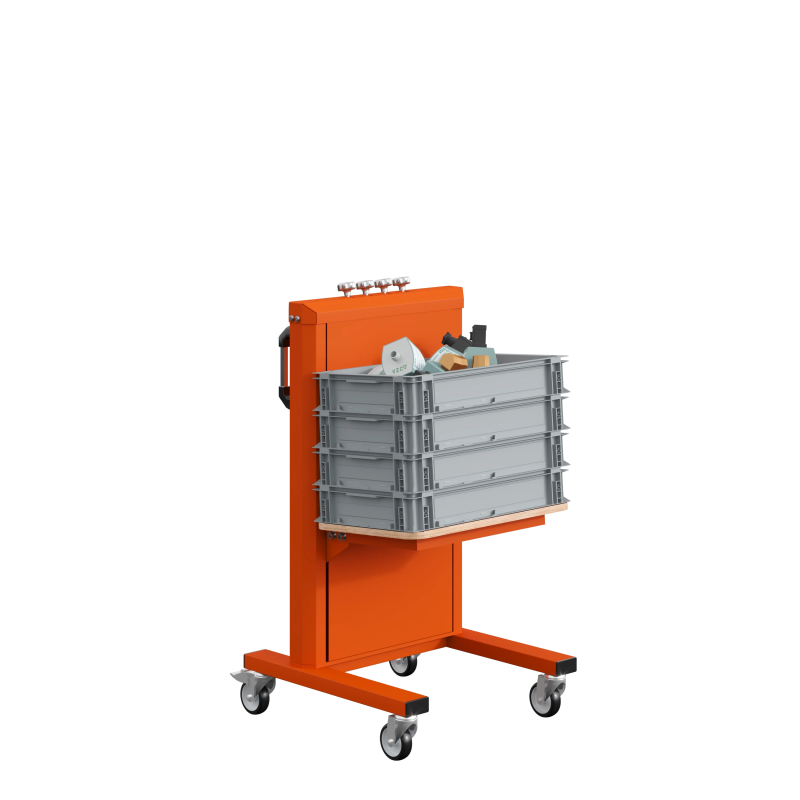

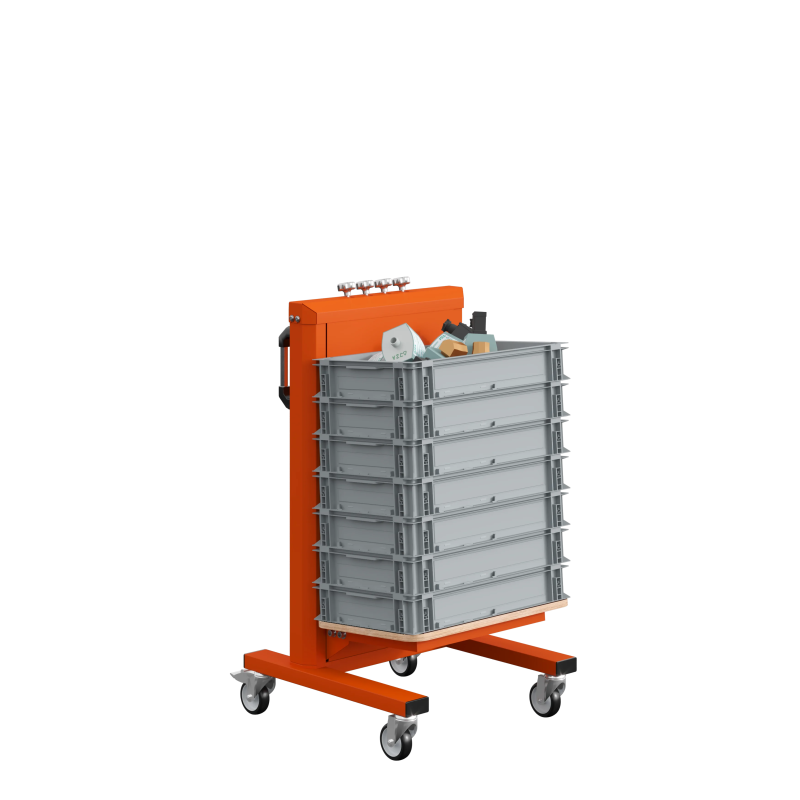

The Adjustable Constant Level Trolley is designed for applications where the load-bearing capacity must be manually adjusted. With its patented adjustment system, the trolley can be adapted to different load ranges and bin stacking volumes.
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Adjustable Constant Level Trolley – 650x665x1170 Mm
Product Information
The Adjustable Constant Level Trolley is designed for applications where the load-bearing capacity must be manually adjusted. With its patented adjustment system, the trolley can be adapted to different load ranges and bin stacking volumes.
The trolley has a height range above floor level of 345 mm to 810 mm, a 465 mm stroke, and is equipped with 4 swivel castors Ø100 mm, including 2 with brakes. The worktop measures 620 x 420 x 19 mm.
Key Features
- Manually adjustable load capacity
- Patented adjustment system

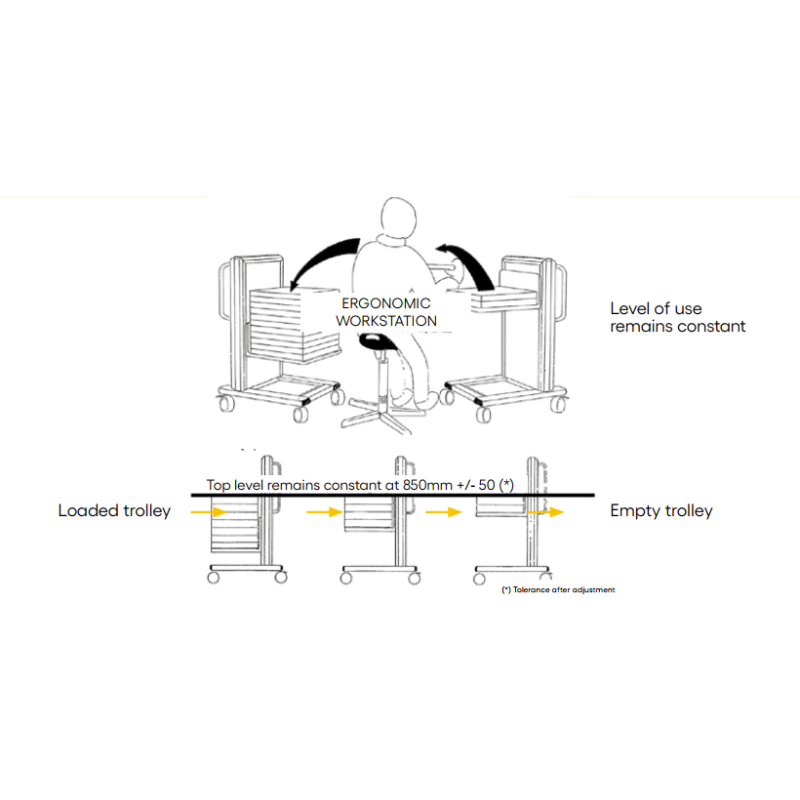

- Constant working height for ergonomic handling
- Suitable for variable load weights
- Height range: 345 – 810 mm
- Stroke: 465 mm
- Worktop: 620 x 420 x 19 mm
- 4 swivel castors Ø100 mm, including 2 with brakes
- Mechanically welded steel construction
- Structured epoxy powder-coated finish
- Ideal for logistics, handling, and assembly
Applications
- Variable storage and handling processes
- Assembly workstations
- Logistics and internal transport
- Stacking and unloading bins
- Ergonomic workstations
- Production environments
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Adjustable Constant Level Trolley |
| Dimensions WxDxH | 650 x 665 x 1170 mm |
| Height Range Above Floor | 345 – 810 mm |
| Stroke | 465 mm |
| Worktop | 620 x 420 x 19 mm |
| Castors | 4 swivel castors Ø100 mm |
| Brakes | 2 castors with brakes |
| Adjustment | Manual with patented system |
| Construction | Mechanically welded steel profiles |
| Finish | Epoxy powder coating, oven-polymerised at 180°C |
| Use | Assembly, logistics, and handling |
Delivery
Delivery in the Netherlands and Belgium and shipping across Europe via SALESBRIDGES.
Request A Quote Or More Information
For pricing, bulk orders, or custom requirements, get in touch:
Email: [email protected]
Phone / WhatsApp: +31 6 52883848
| Brand | Salesbridges |
| Article code | SB020080004 |
| SKU | SB020080004 |
