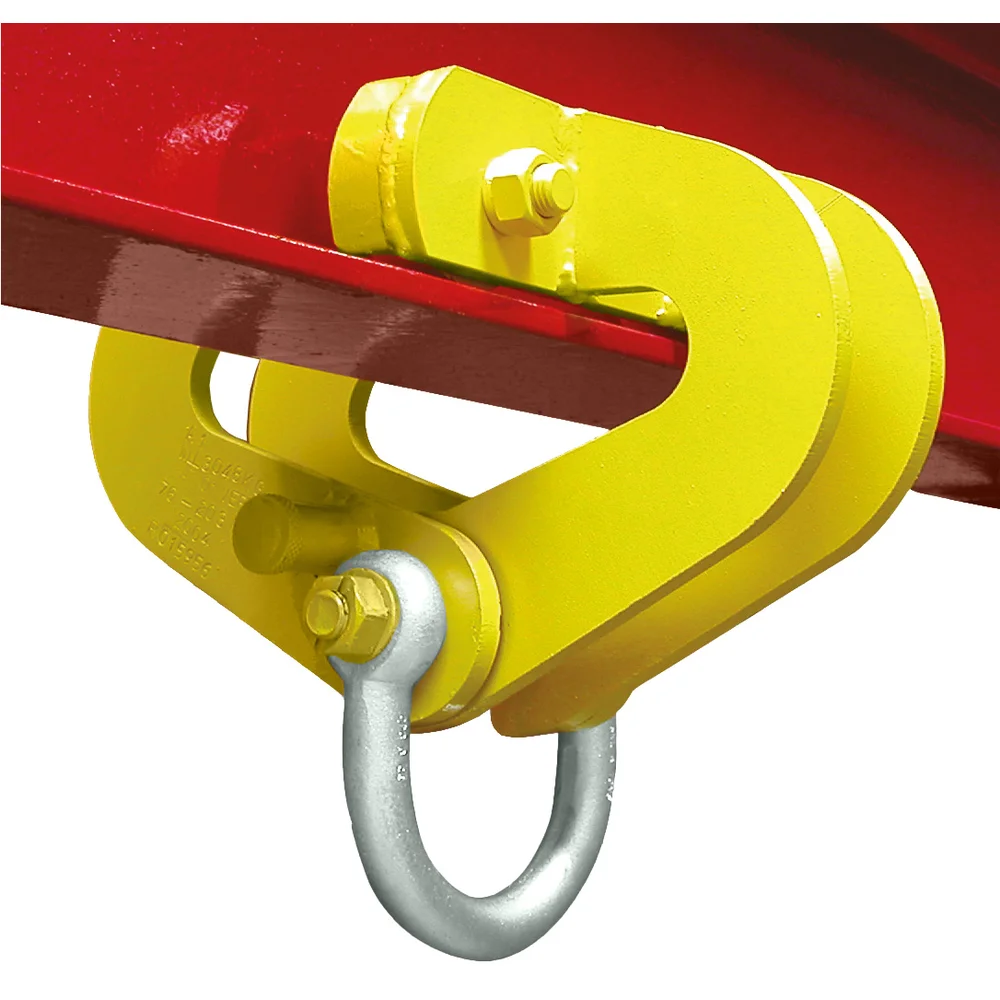

A professional beam clamps and hand trolleys - 3000-10000 kg

Create your own review

EUR 990,00 Excl. tax

EUR 1.197,90 Incl. tax

Excl. Shipping costs

The A series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.

In stock

1-2 weeks

Quantity

- +

Add to cart

Add to wishlist

Uitstekende kwaliteit
Laagste prijs garantie
Snelle levering
More information? Contact us about this product
Add to comparison list

Product description

A professional beam clamps and hand trolleys - 3000-10000 kg

The A series provides professional beam clamps and hand trolleys for safe and efficient industrial use. Select the correct variant by capacity, operating range and unit weight.

Key features

Fast installation on suitable steel profiles
Suitable as a suspension point or for load travel, depending on model
Safety factor and proof load according to the product specification
Check beam size, load direction and WLL before use

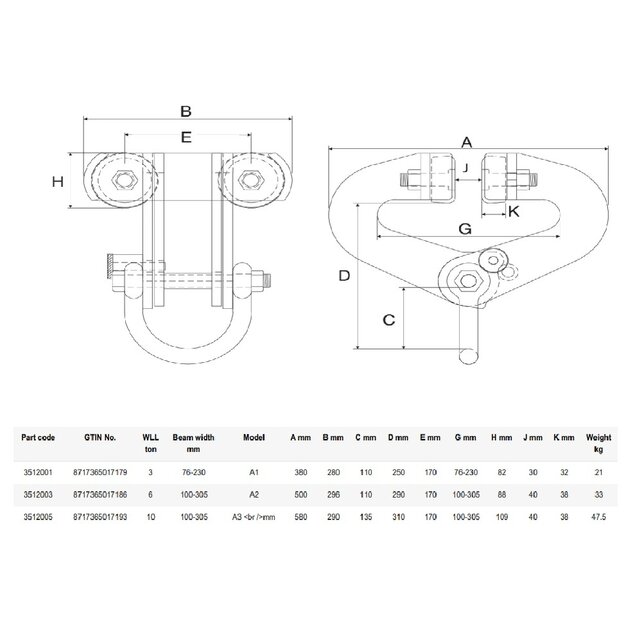

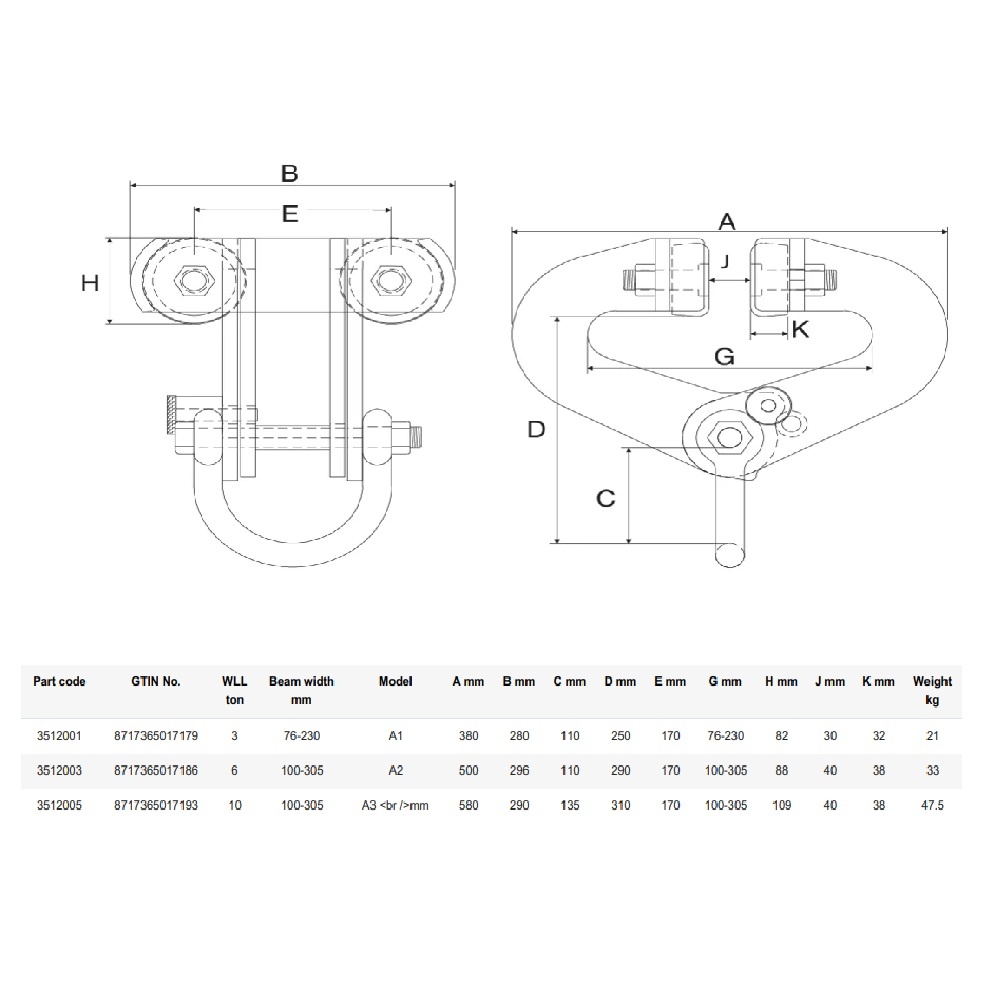

Technical specifications

Model	Capacity	Range	Weight	Article code
A1	3000 kg	76-230	21 kg	SB3512001
A2	6000 kg	100-305	33 kg	SB3512003
A3	10000 kg	100-305	47.5 kg	SB3512005
Norm	EN 12100-1/2, EN 13155 / EN 13157, AS 4991, ASME B30.20 (as applicable)

Hinged hand trolley with automatic locking.

Properties

Can be mounted on rails easily and very quickly.
With wheel fracture support device.
Maximum beam thicknes for type A1=28 mm and A2/A3 = 30 mm.

Marking: According to standard, CE-marked
Standard: EN 12100, EN 13157
